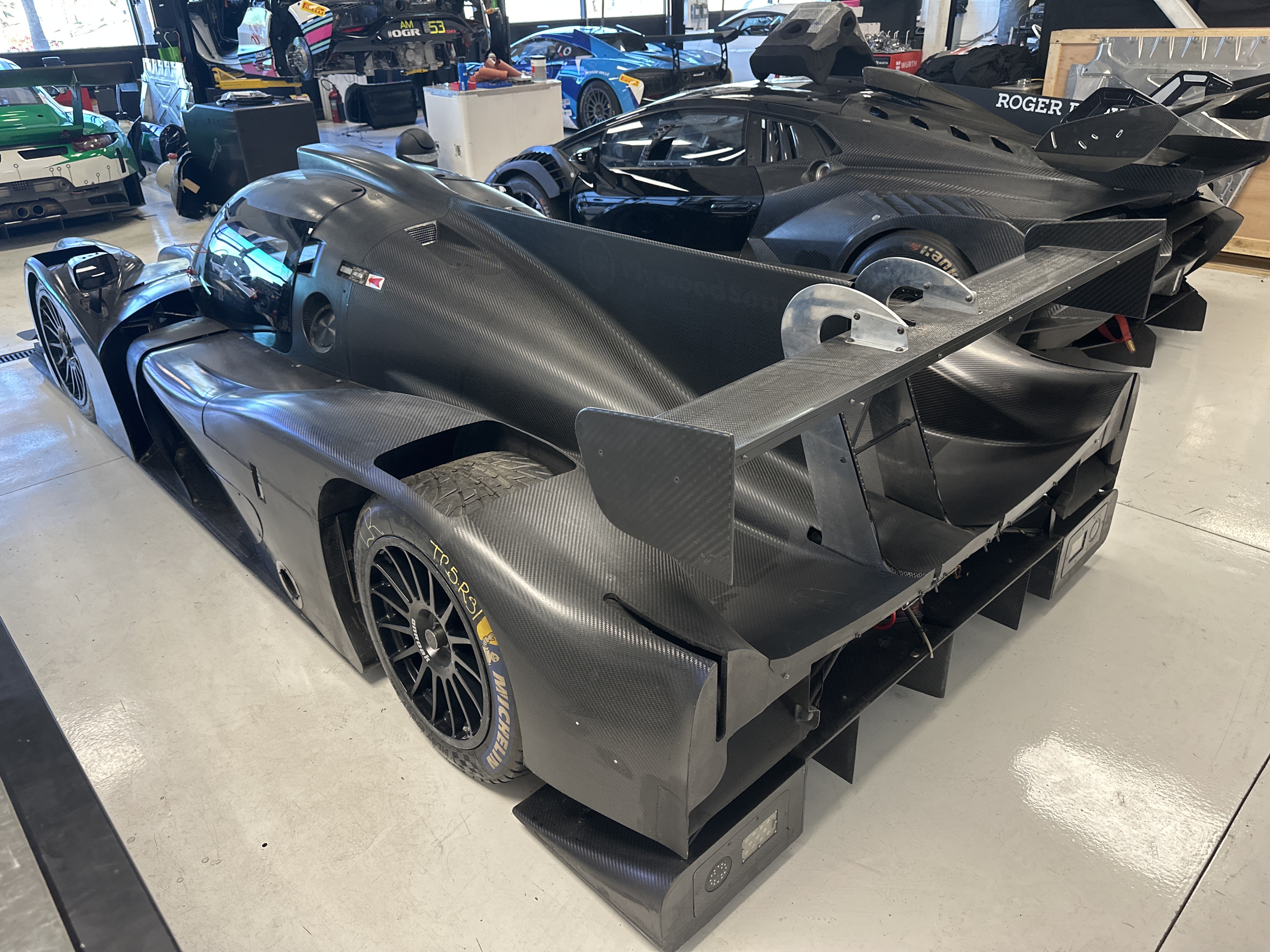

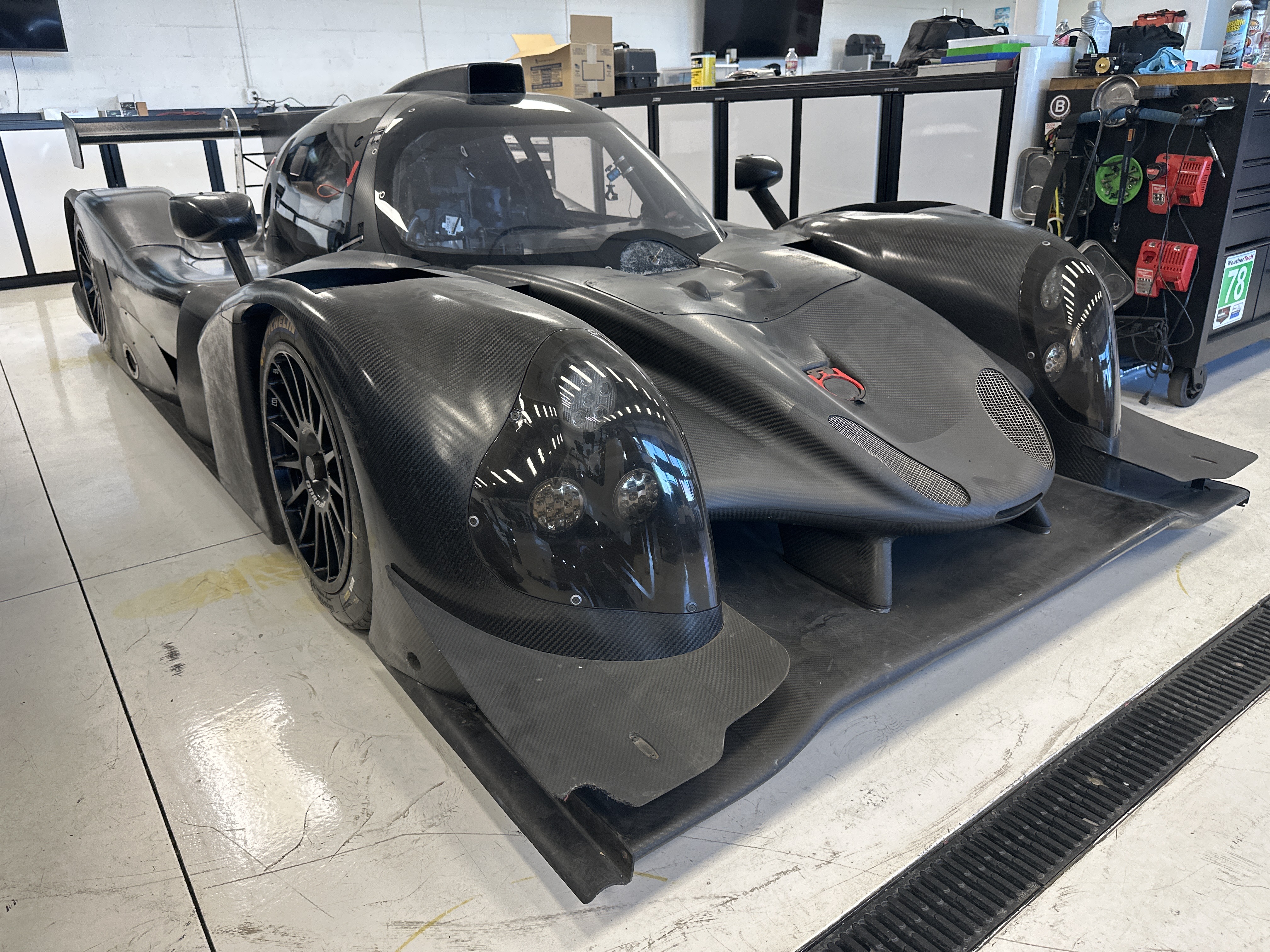

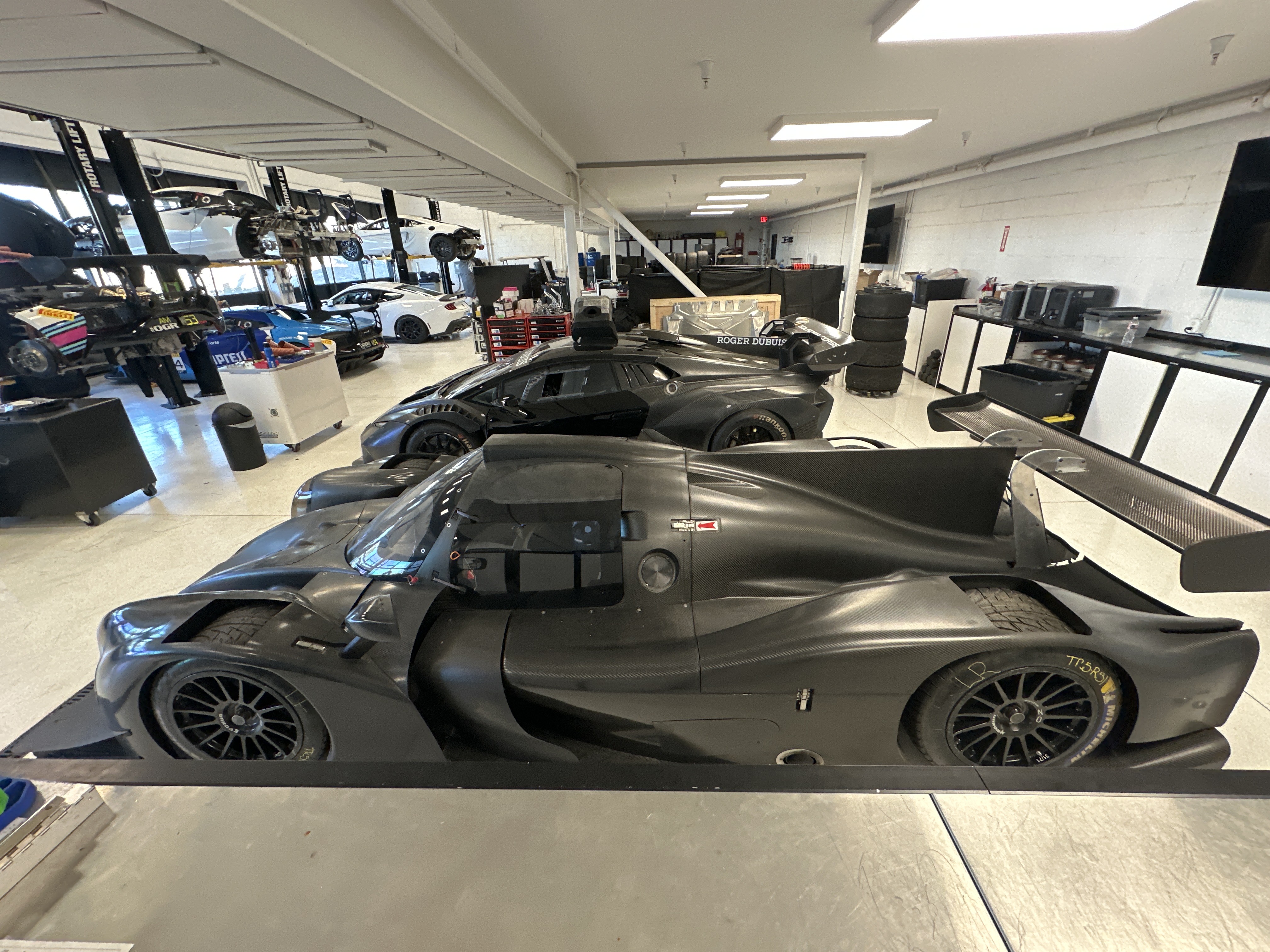

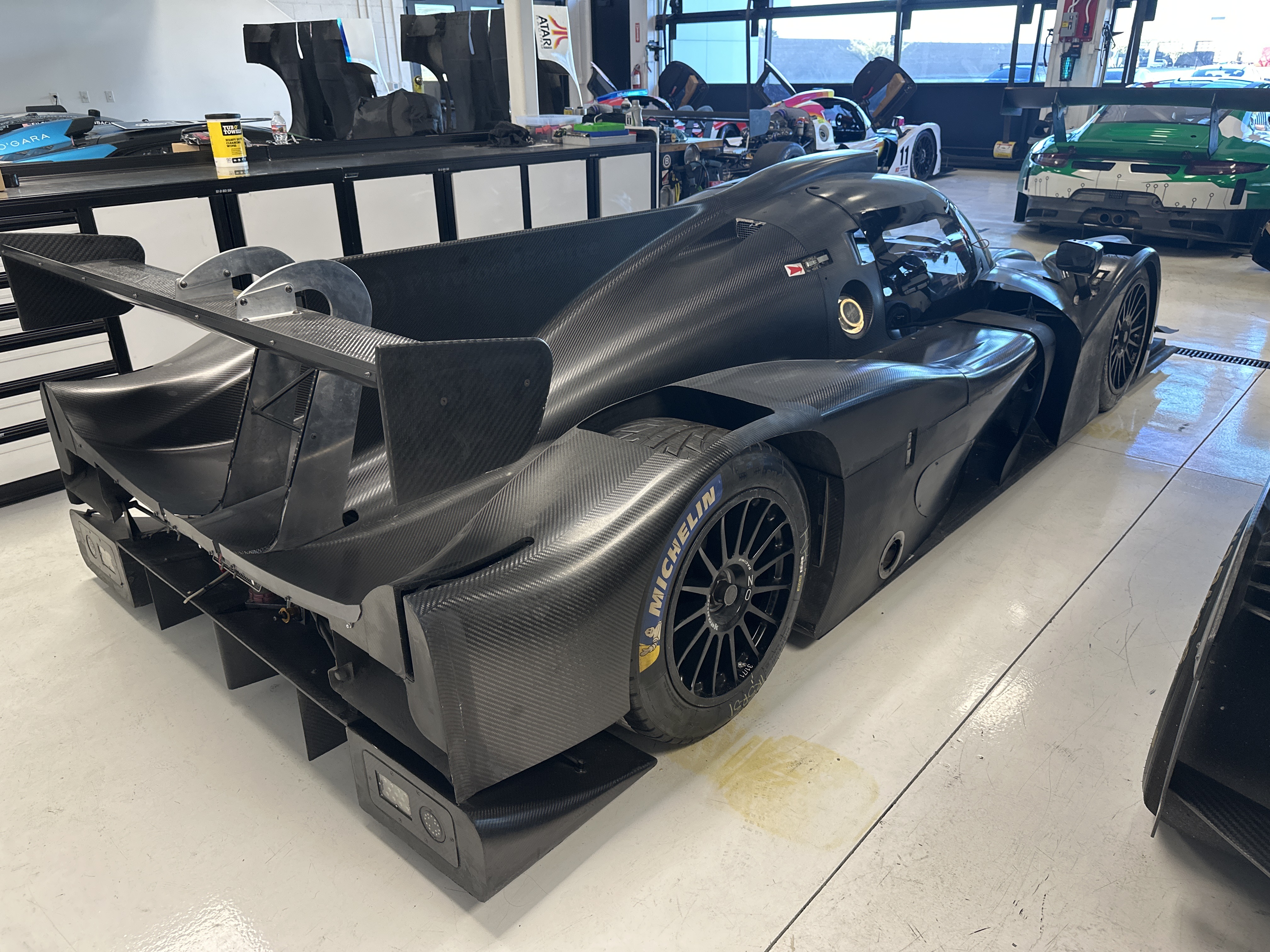

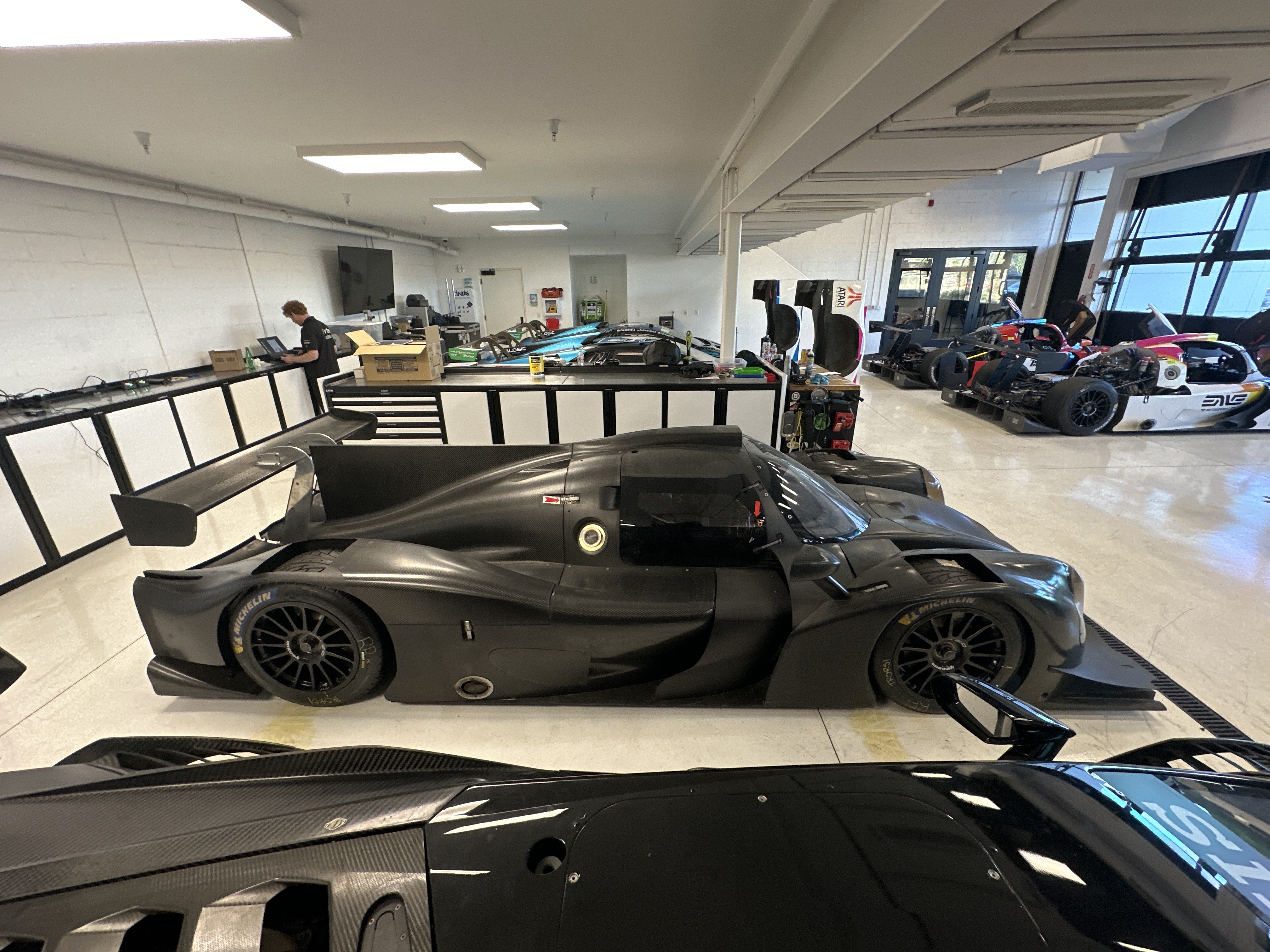

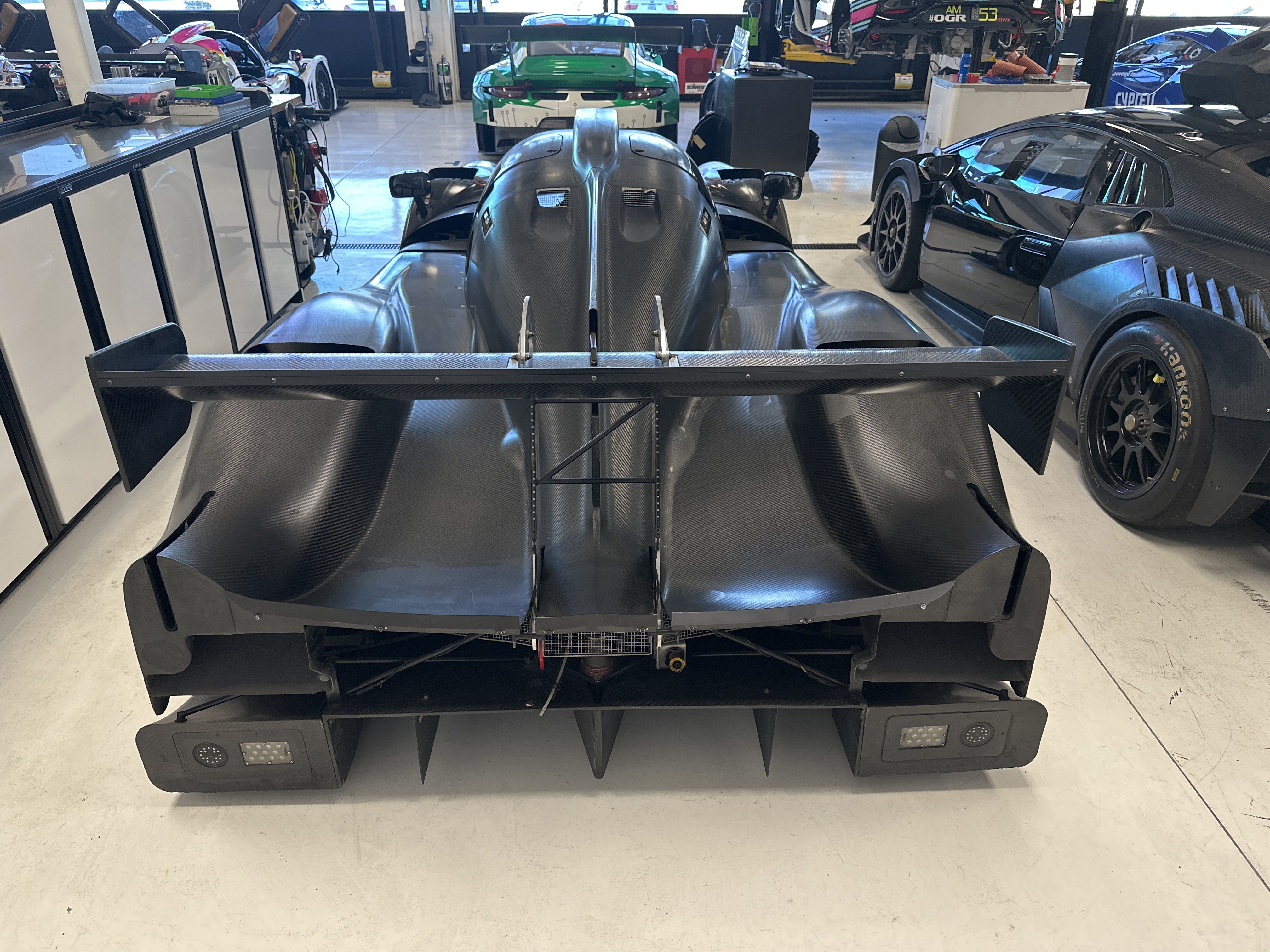

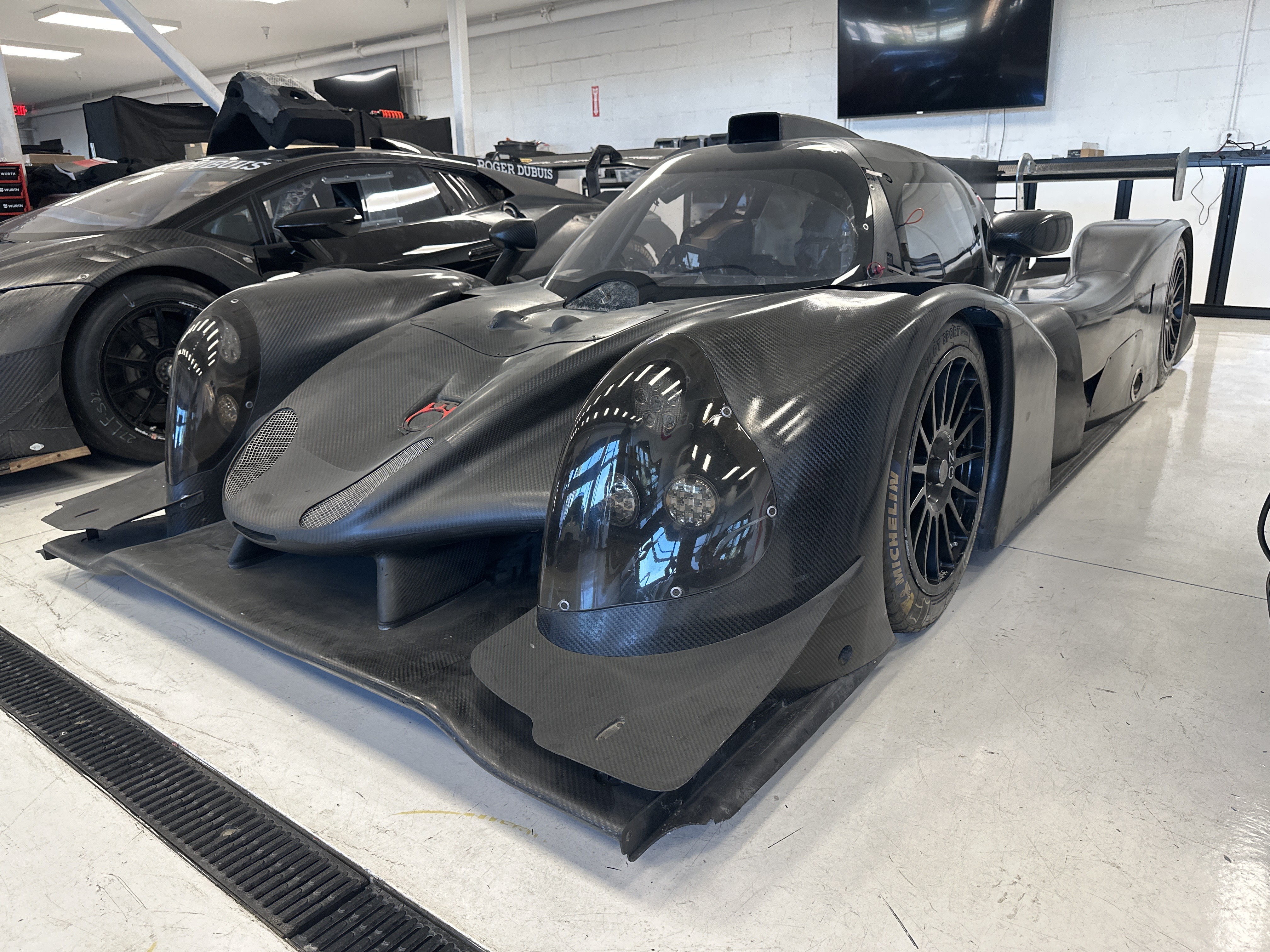

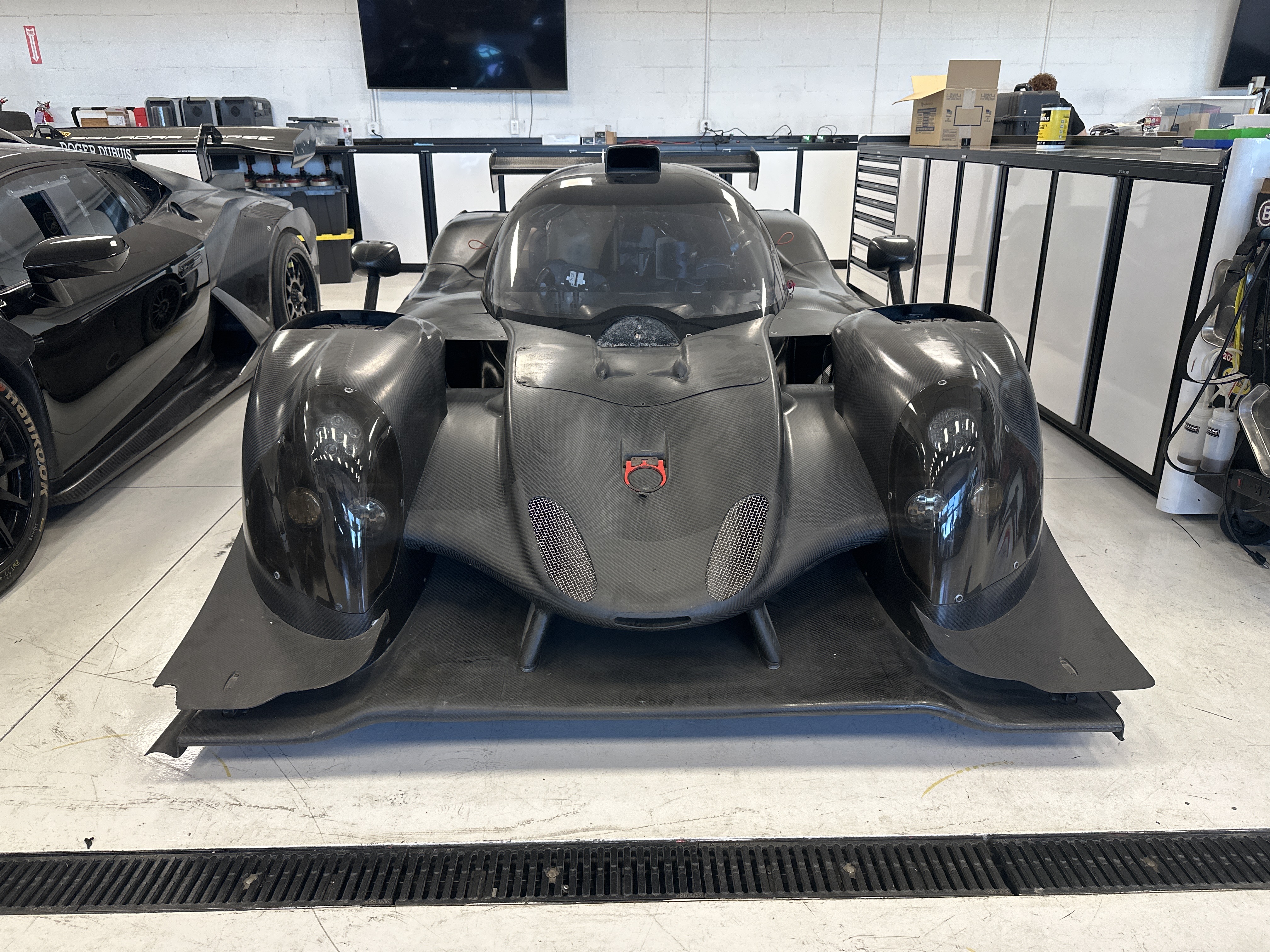

The 2017 Ligier JS P315 is a proven modern prototype built for serious performance with manageable operating costs. Developed by Ligier Automotive for global LMP3 competition, it features a lightweight carbon monocoque chassis, advanced aero, and the dependable Nissan 5.0L V8 producing ~420 hp paired to a 6-speed sequential gearbox.
Fast, stable, and forgiving, the P315 delivers true Le Mans–style prototype performance while remaining accessible to teams and drivers. A championship-capable platform ideal for endurance racing, sprint events, or elite track programs, this is a turn-key prototype engineered to run hard and win.
Additional Details
Chassis
monocoque carbon - HP Composites

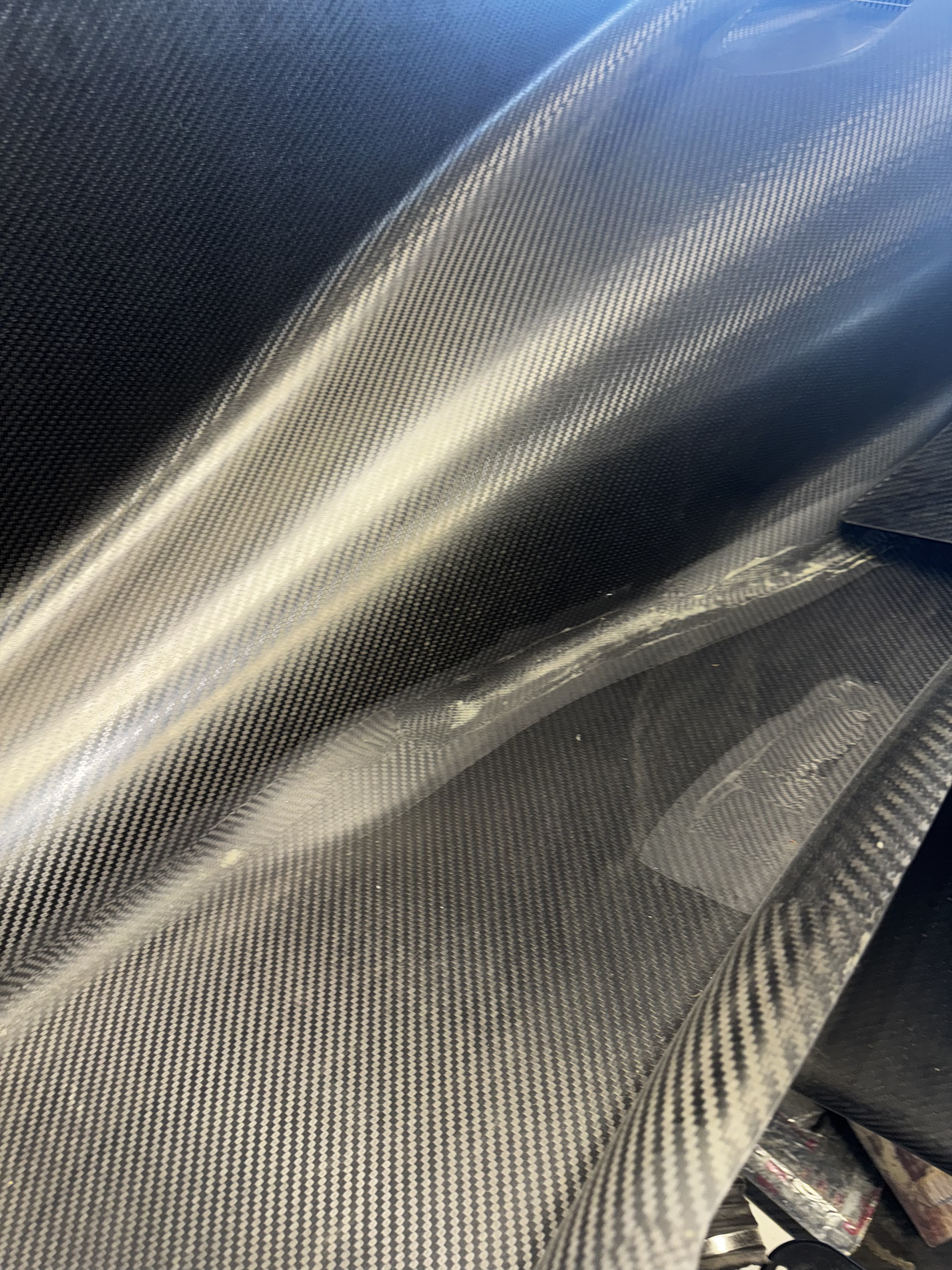

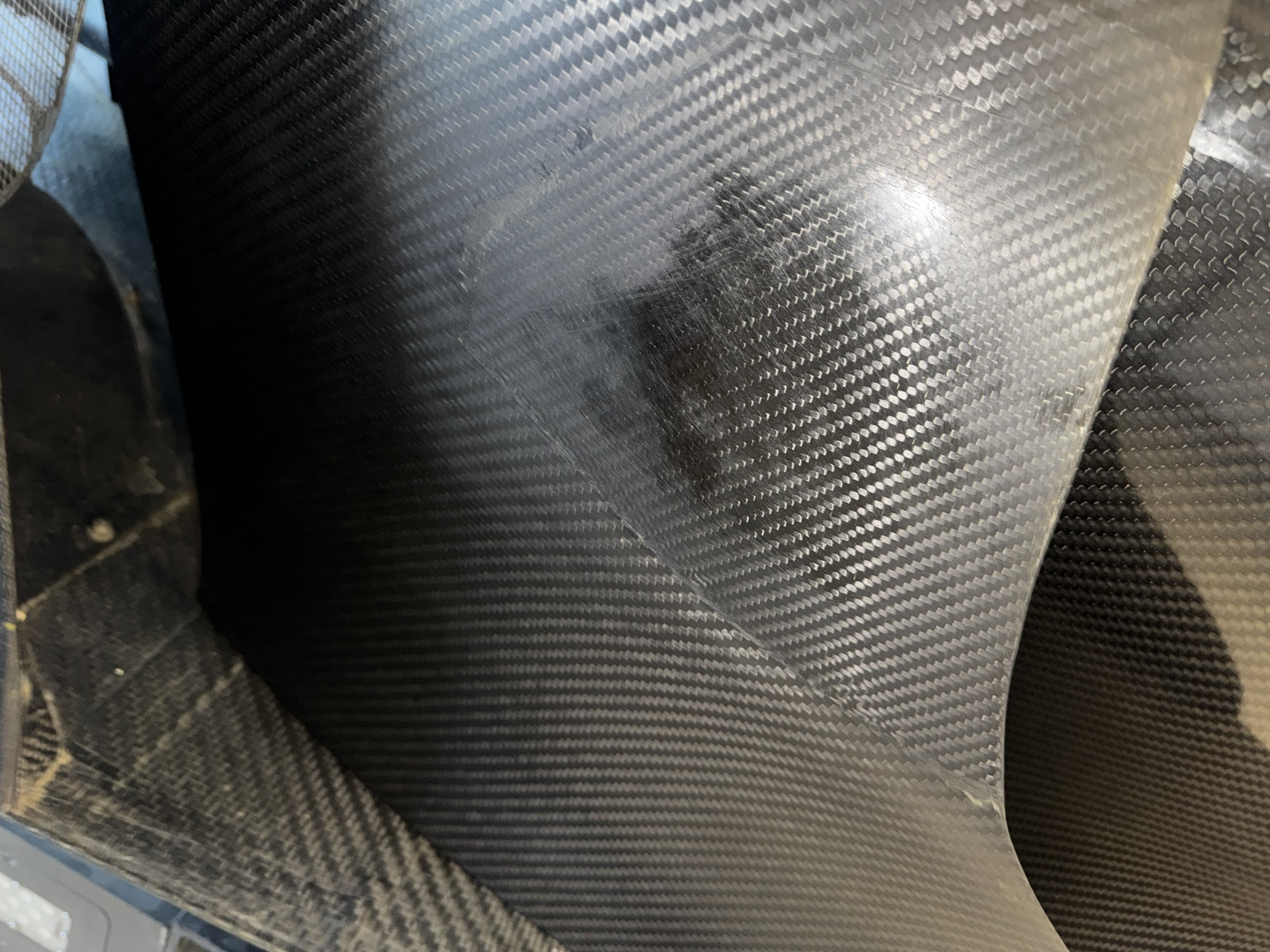

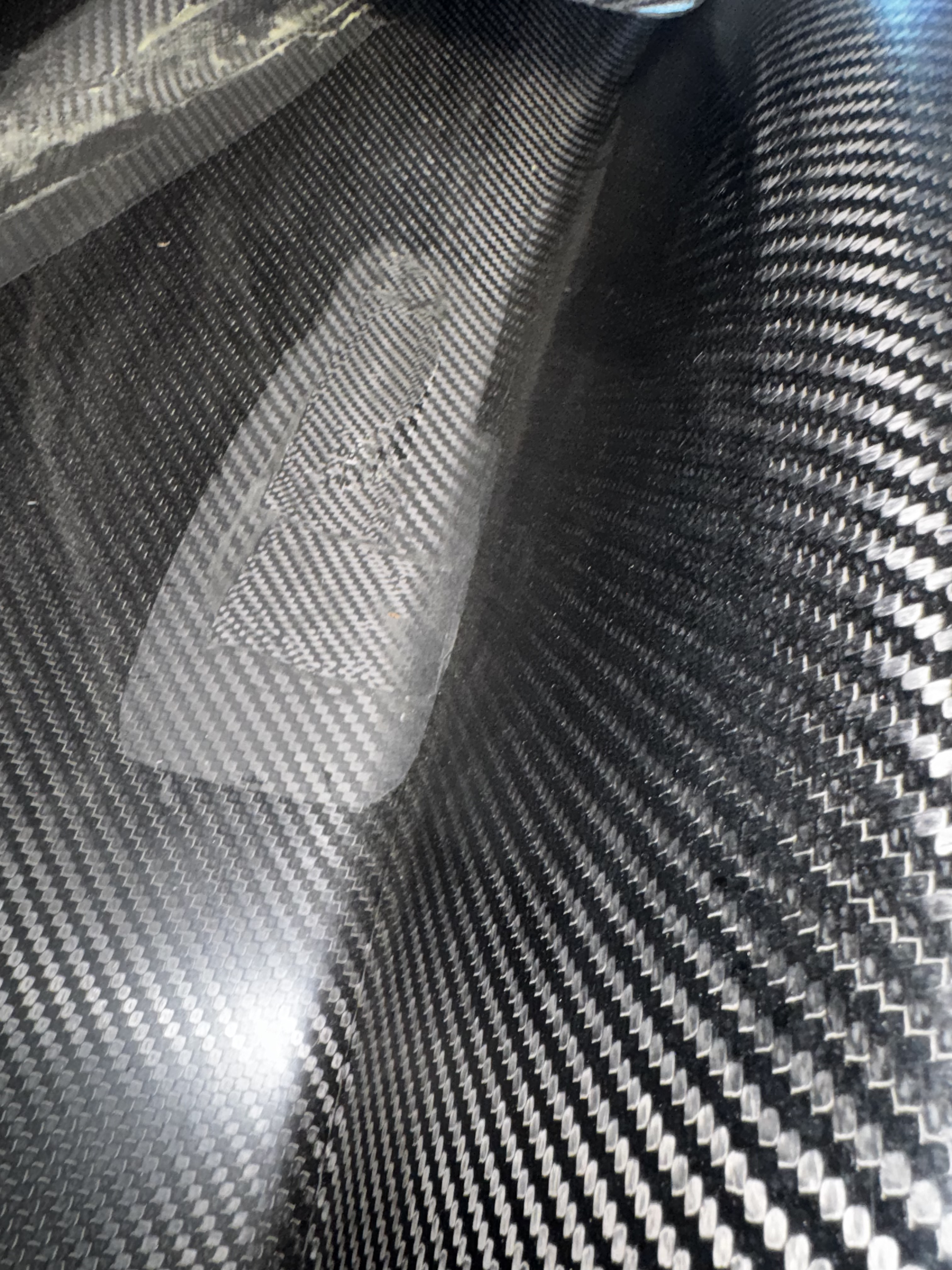

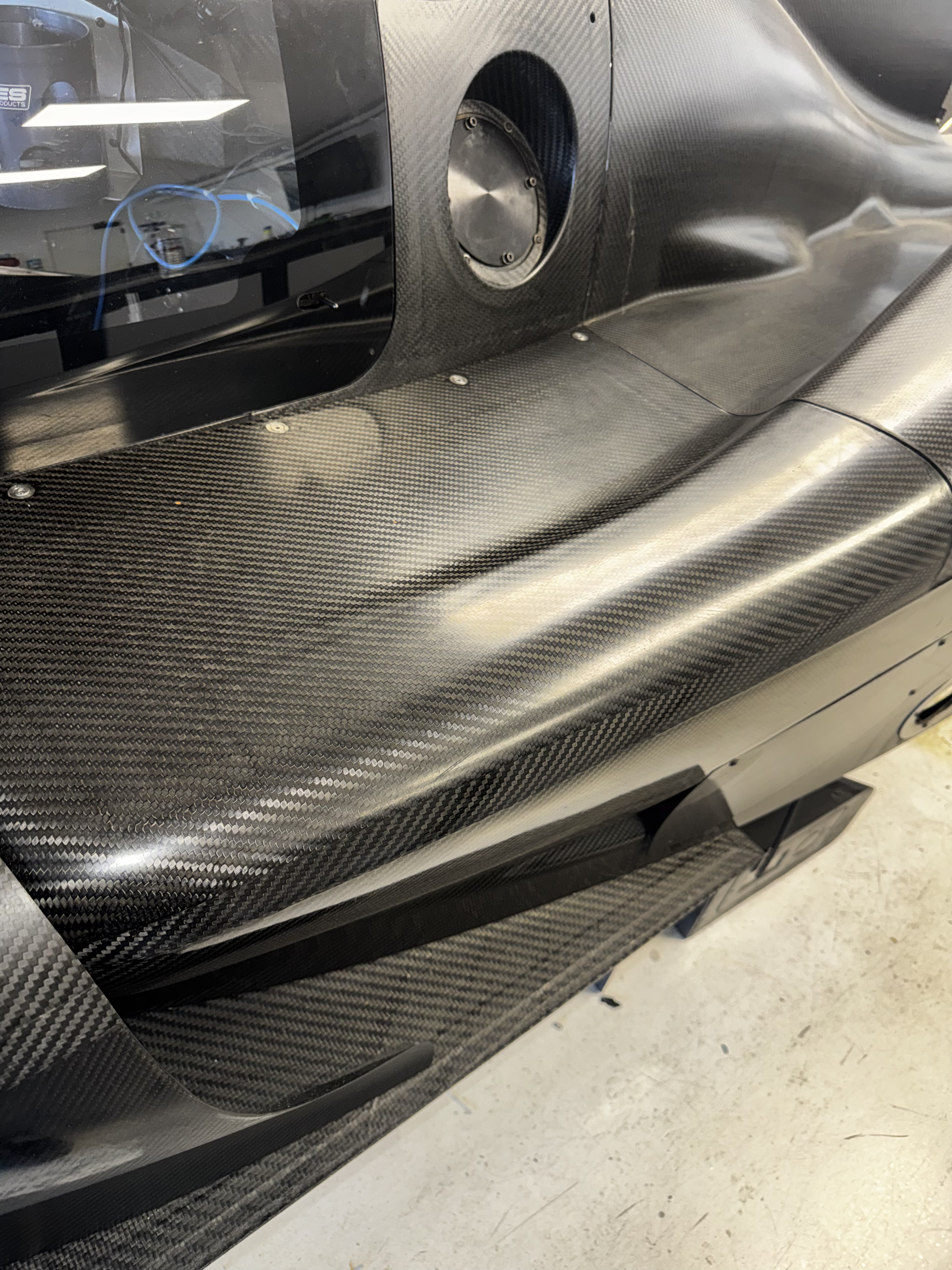

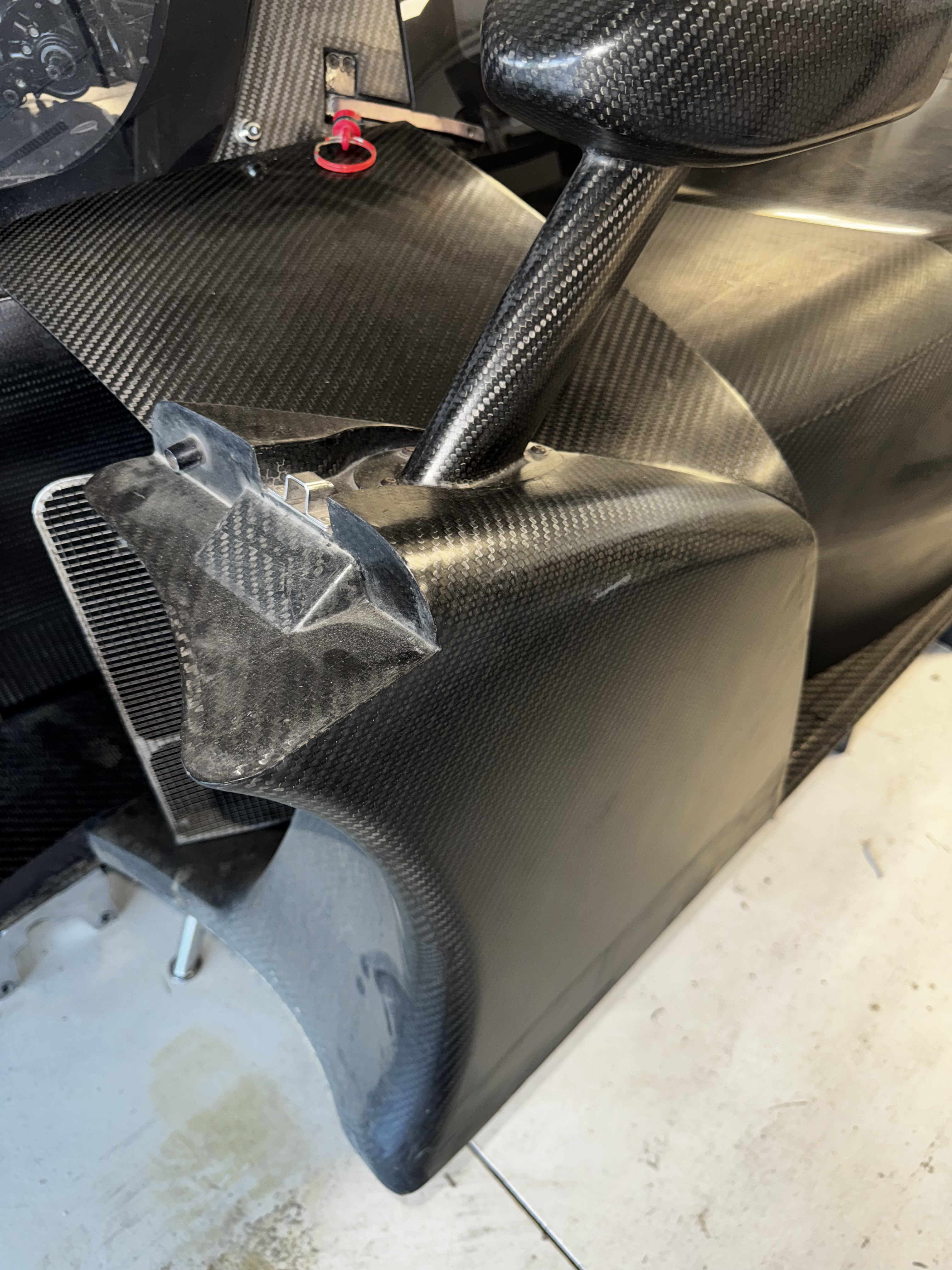

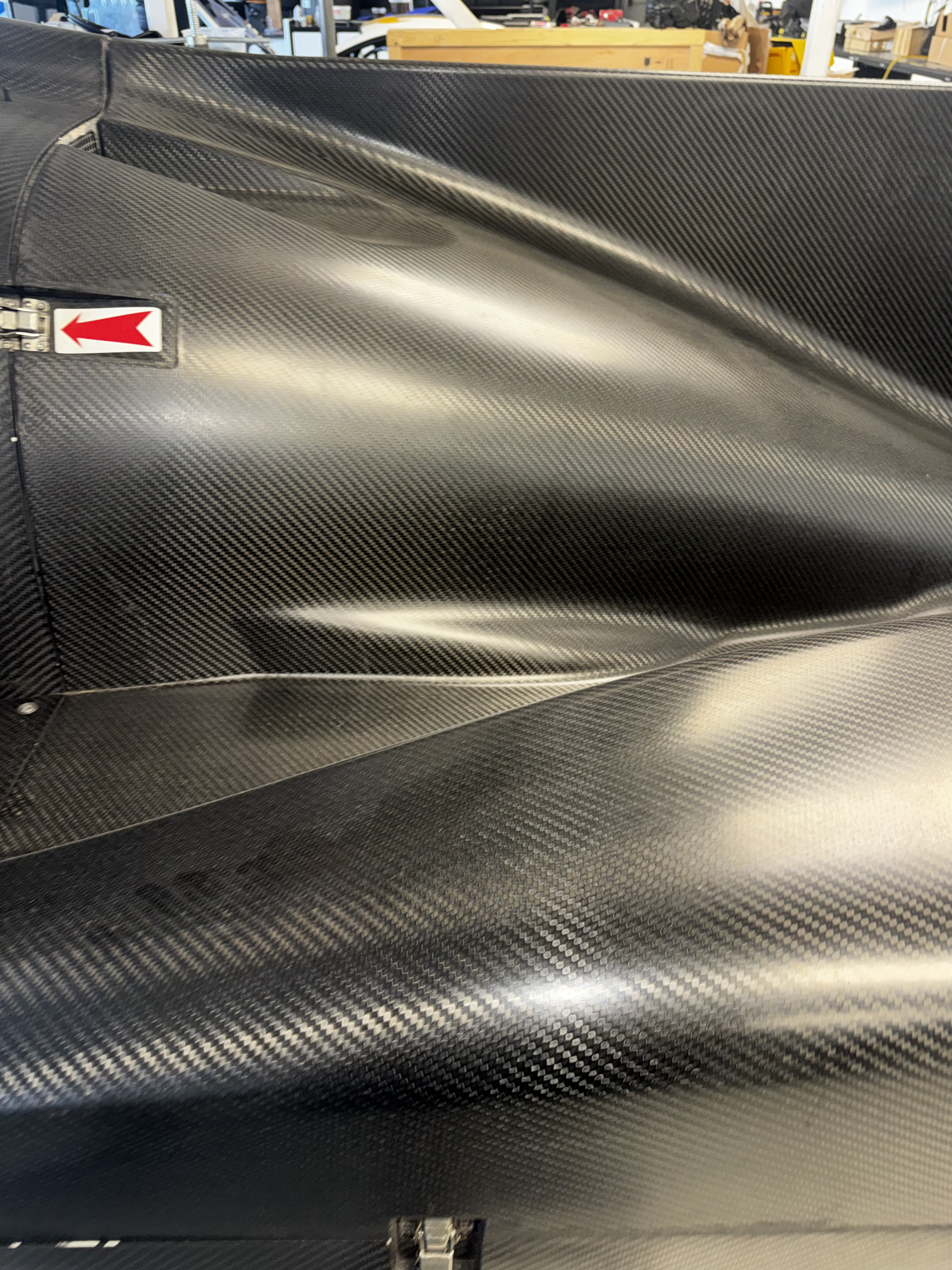

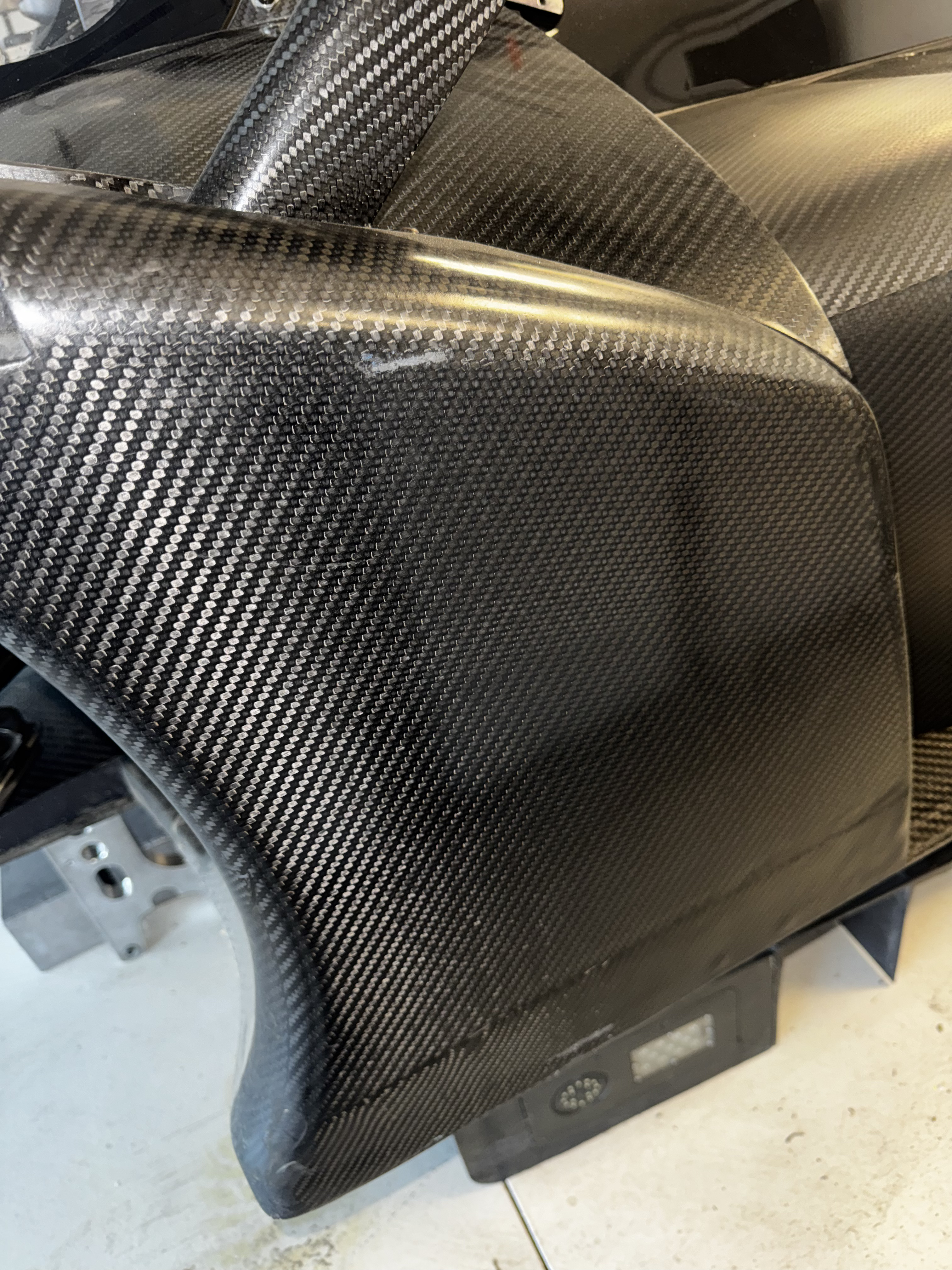

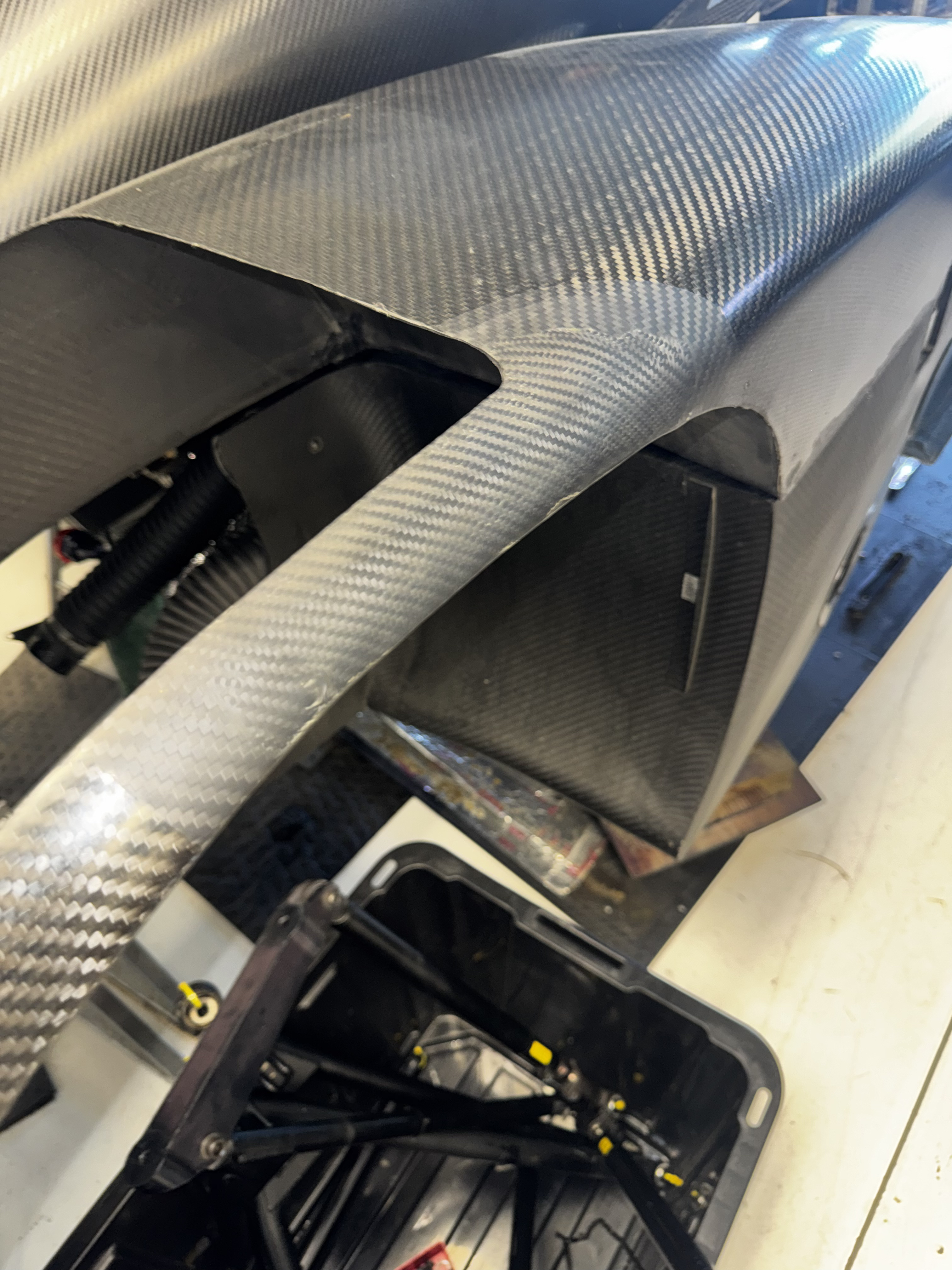

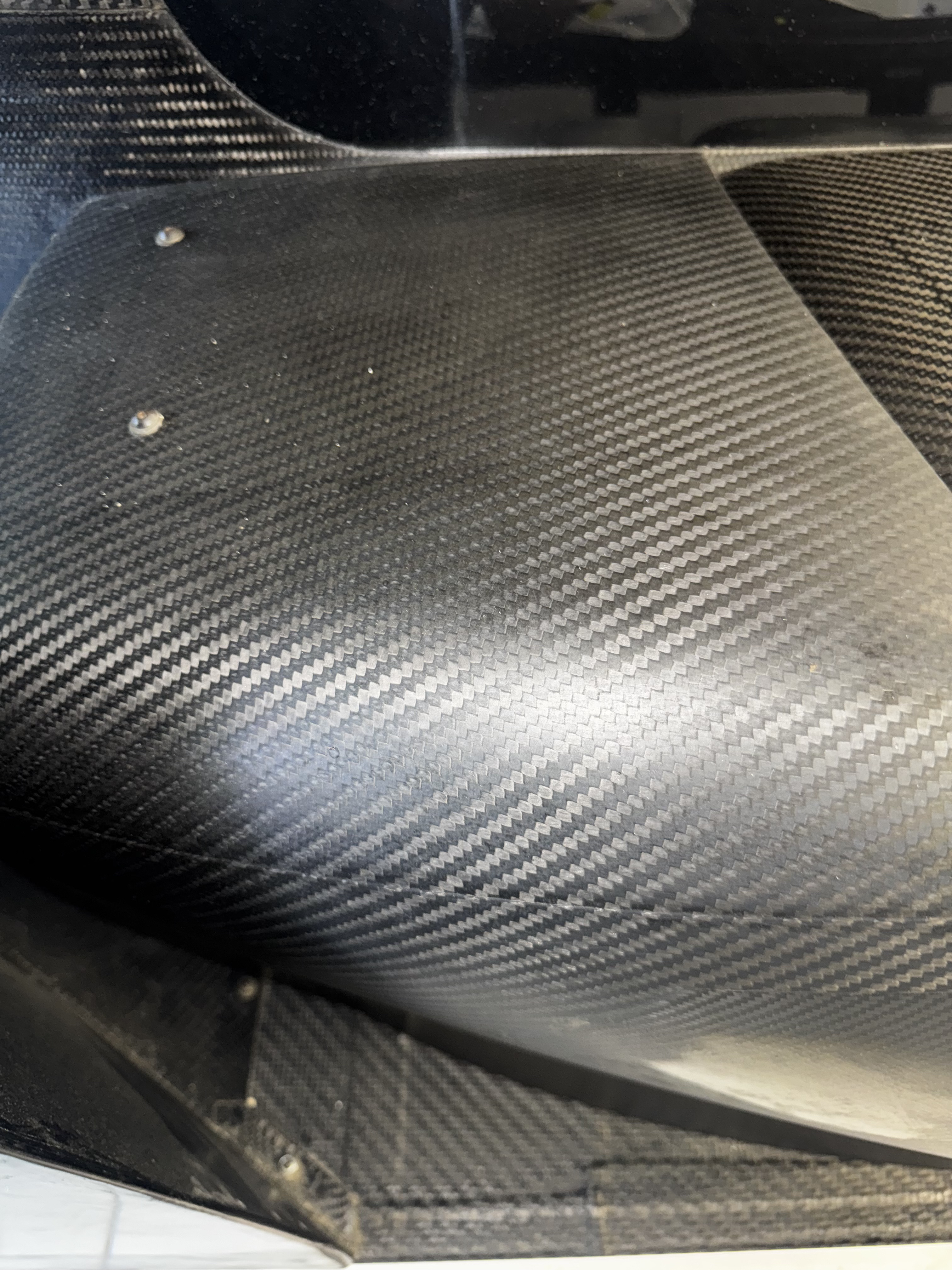

bodywork carbon HP Composites
length: 4605mm - width: 1900mm - wheelbase: 2860mm
weight: 930kg
Suspensions
double wishbone
pushrod and spring-damper combination
latest generation of 3-way shock absorbers
adjustable anti-roll bar system
3rd element front and rear
Gearbox
6-speed sequential gearbox Xtrac 1152 with aluminium casing
semi-automatic pneumatic steering wheel paddle system Megaline
oil radiator cooling
Steering
hydraulic power steering
Engine* & Electronics
Nissan VK50, V8, 5 litres, 420 hp
gearbox and engine control units Magneti Marelli SRG
Brakes
master-cylinder AP Racing
6-piston monobloc calipers Brembo
Ø 14'' front and rear steel discs Brembo
Rims

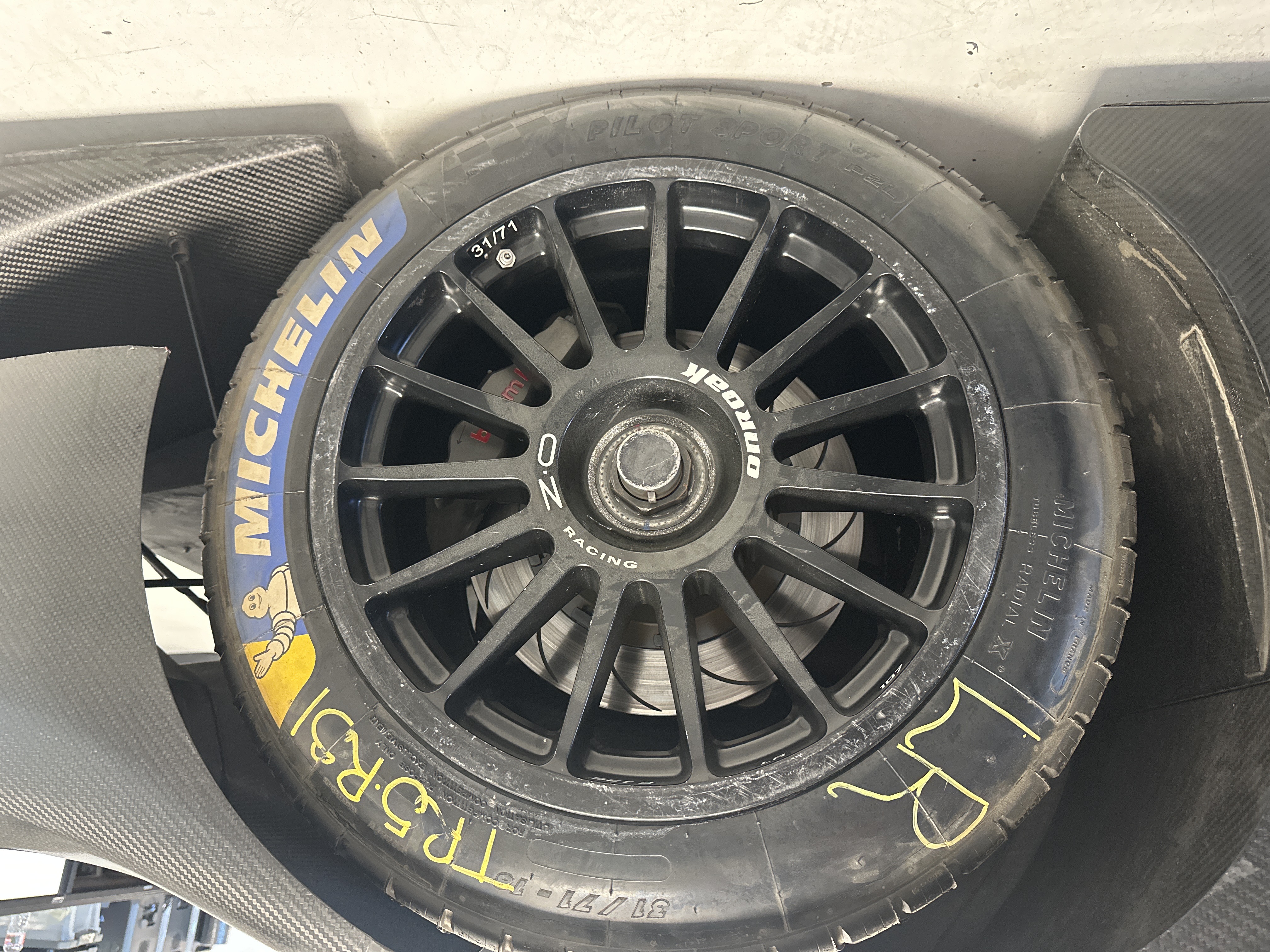

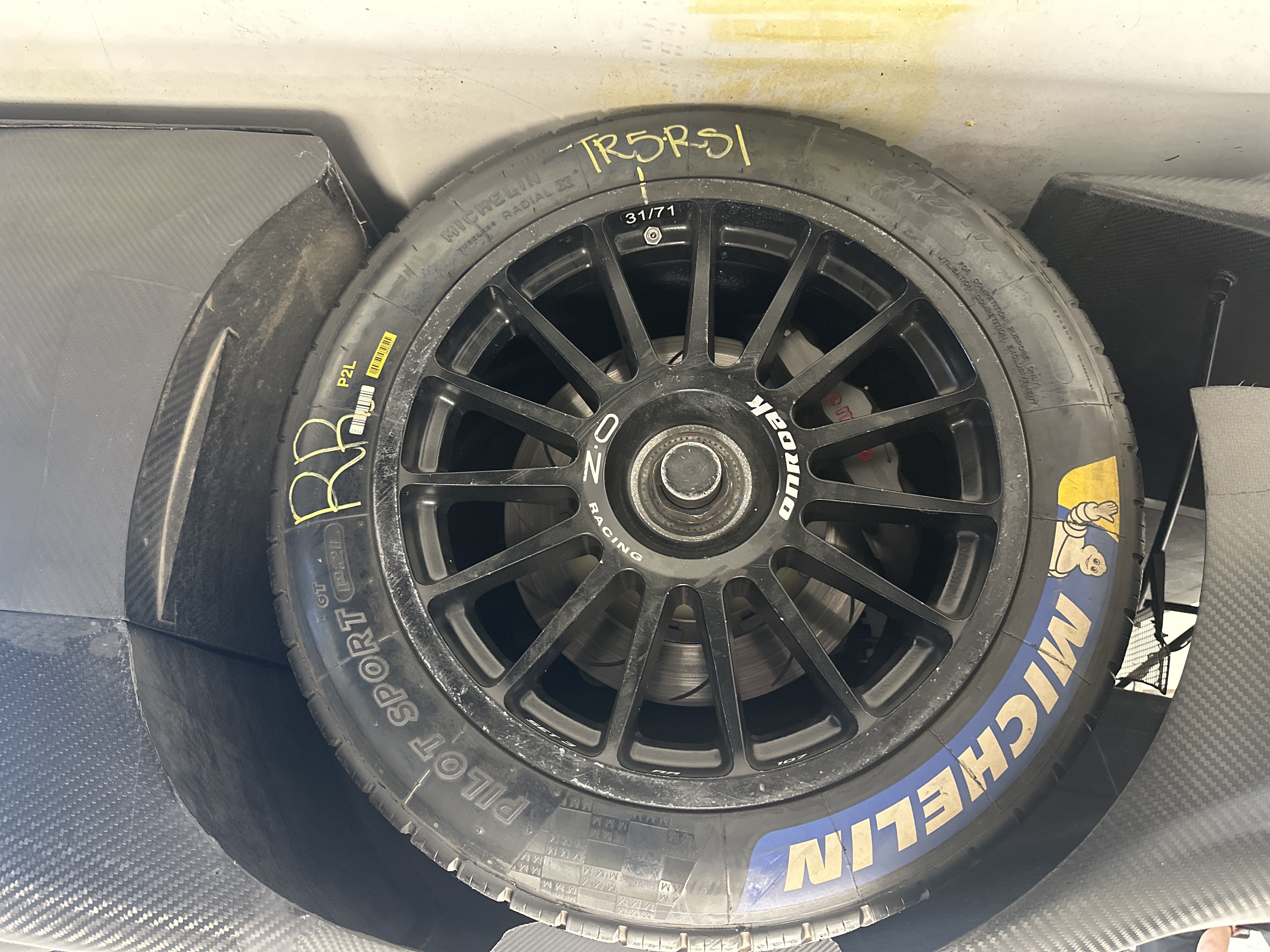

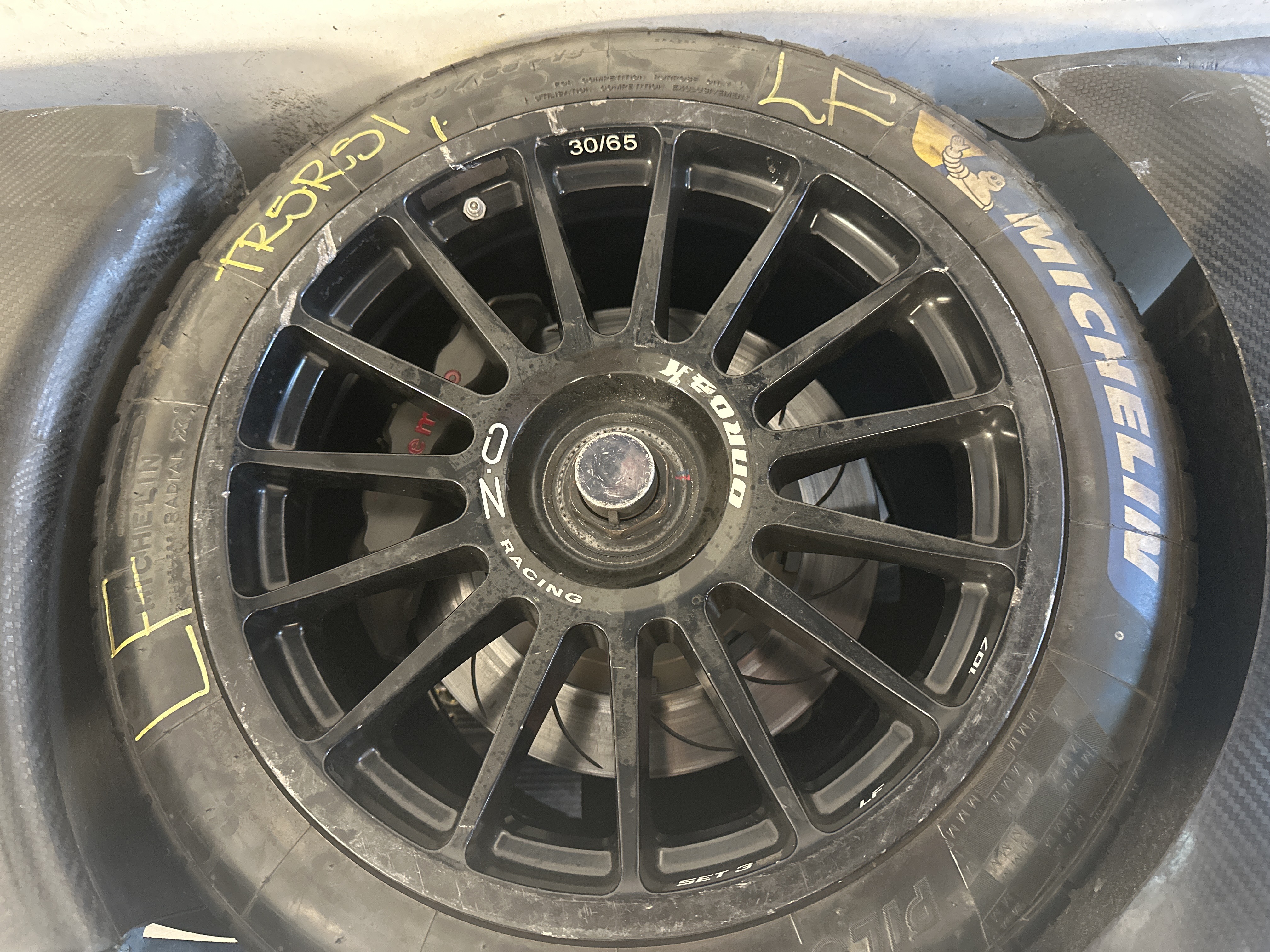

Ø18'' magnesium OZ Racing - front width: 12,5'' - rear width: 13''
Safety
2014 ACO rules
comfortable driving position with carbon seat support
optimized driver and cockpit ventilation
headrest compatible with Hans device
