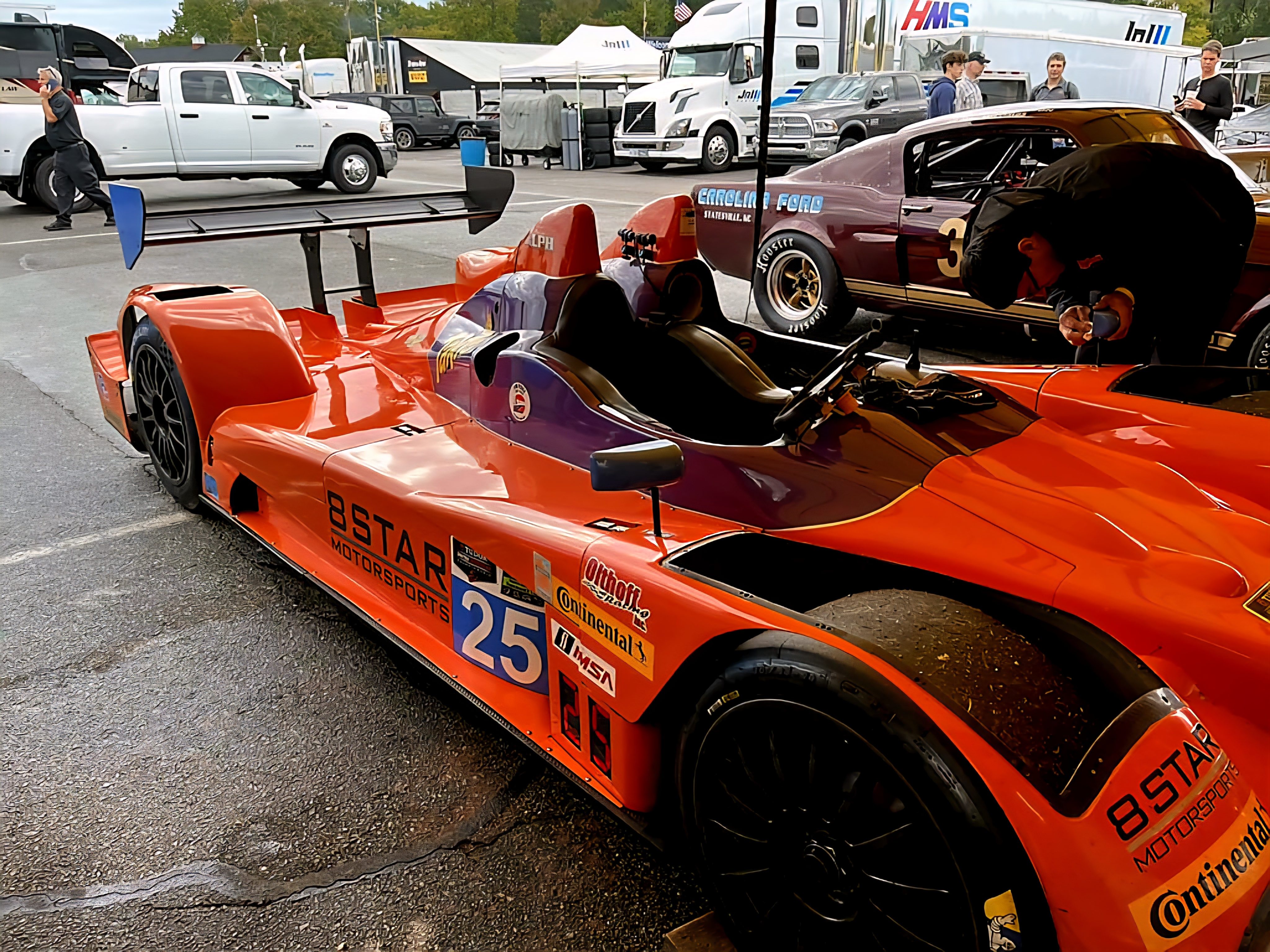

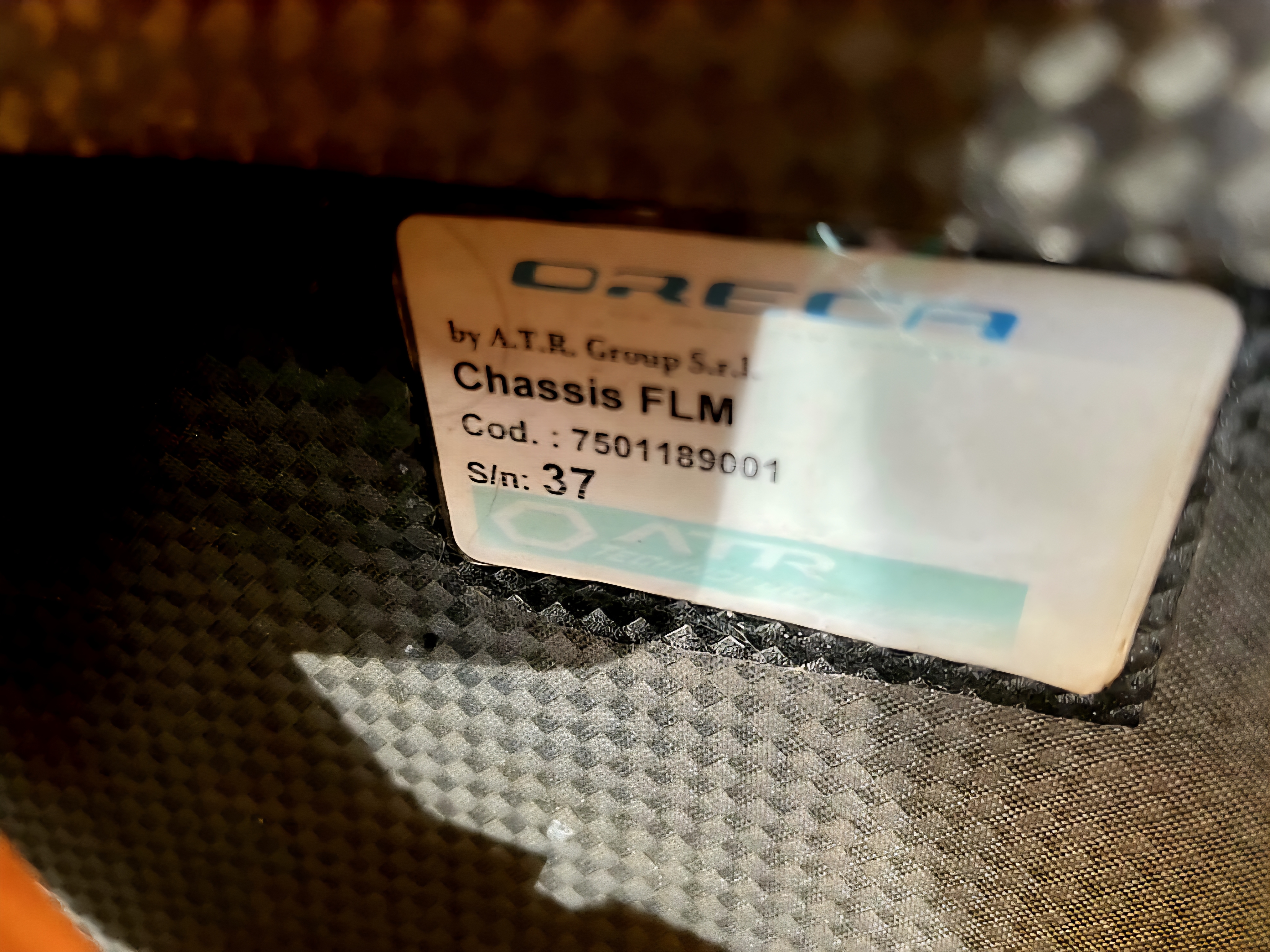

This Oreca FLM09 Prototype, chassis #37 of just 42 built, has been meticulously maintained by Olthoff Racing in North Carolina and is sold with a full endurance prep completed for the current owner. A new Katech engine was installed in 2022, along with a fully serviced Xtrac transmission and a complete Motec electronics upgrade, including traction control. The car features a VBox system with dual cameras, brakes at 50% life, and a freshly refinished body in period-correct livery. It comes with a solid spares package, including seven spare wheels and various additional components. This FLM09 is race-ready and ideal for HSR, SVRA, or any vintage endurance racing effort.
Additional Details
Highlights include:

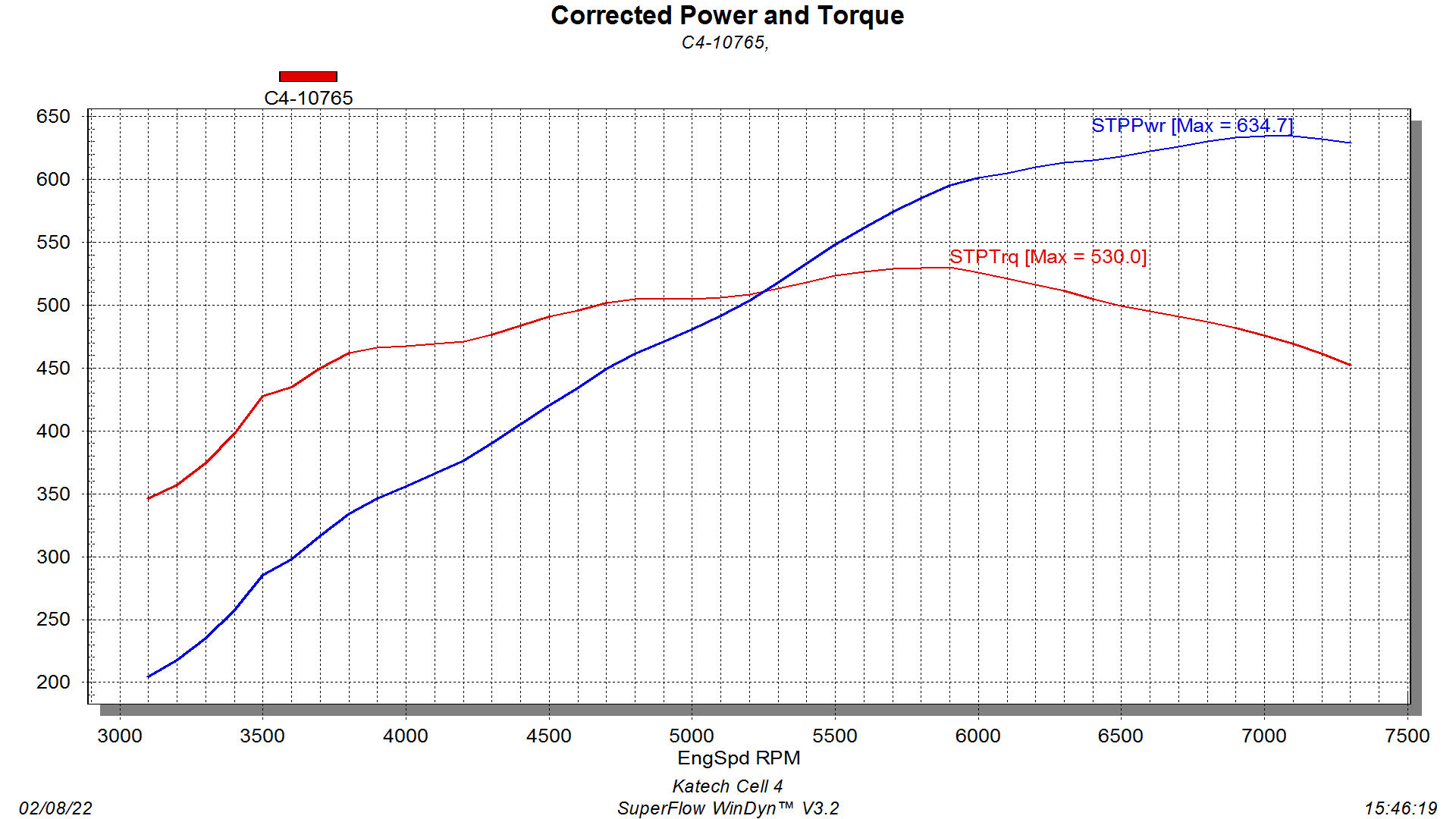

New Katech engine installed in 2022
Fully serviced Xtrac gearbox (2022)

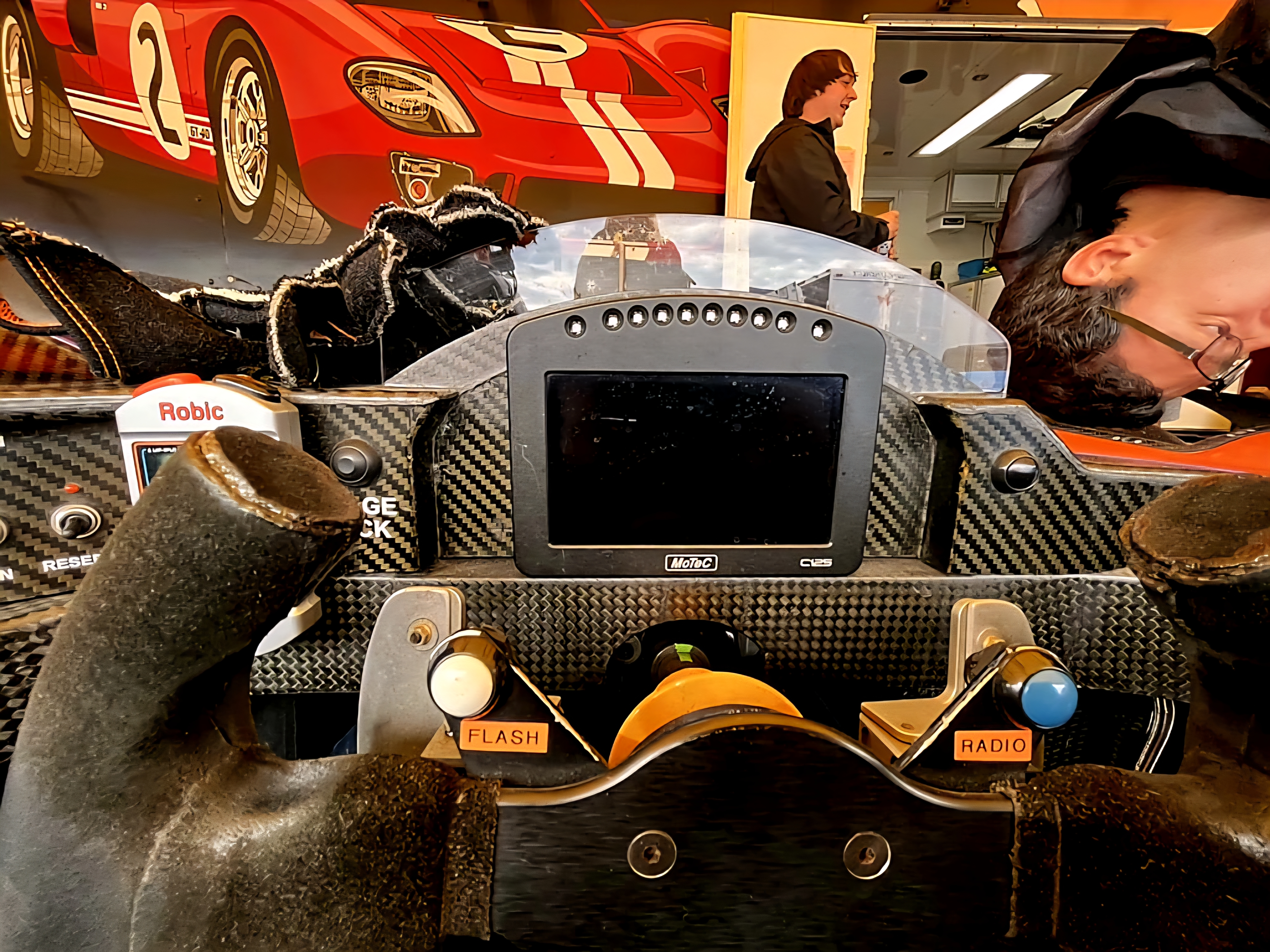

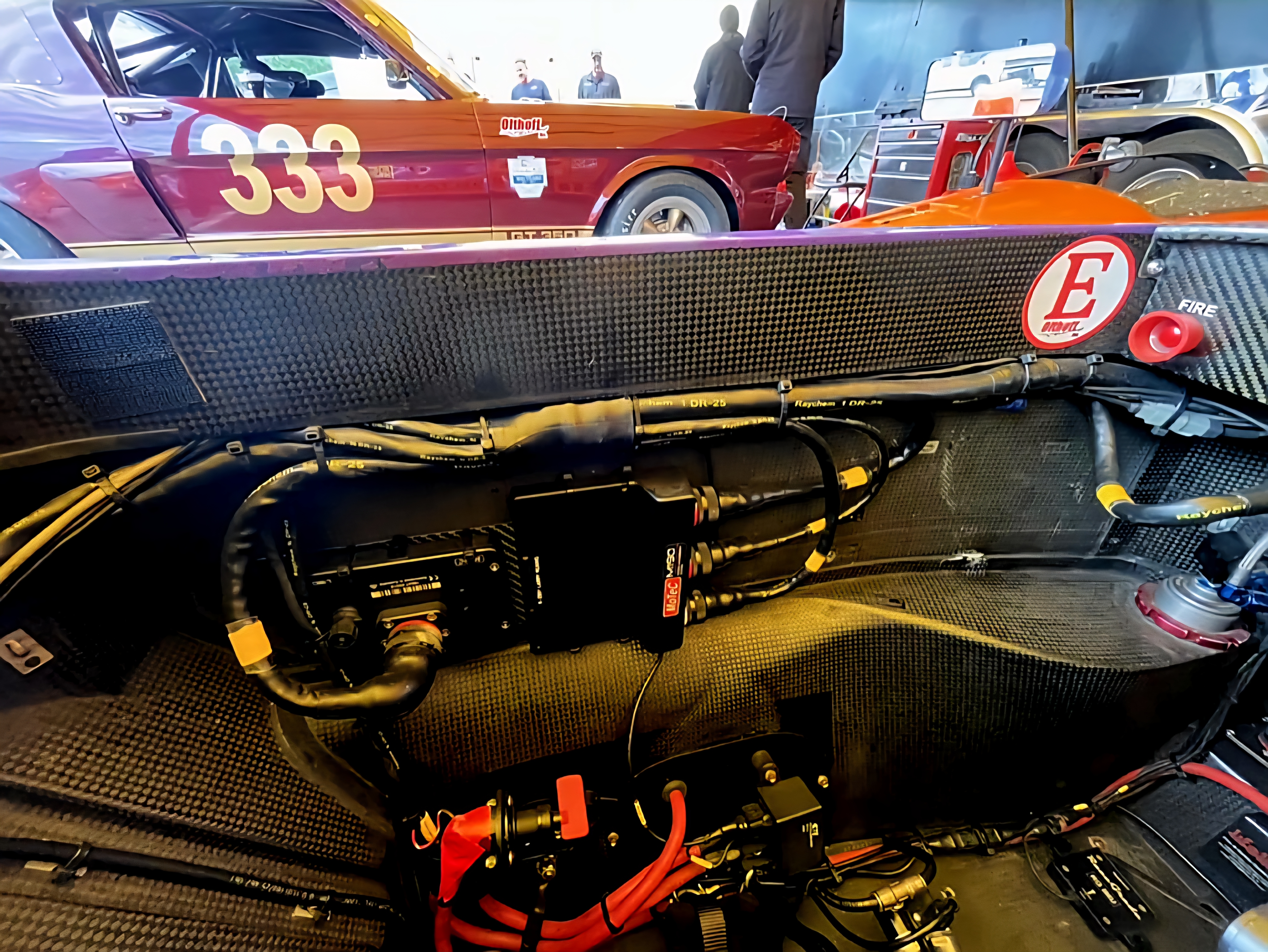

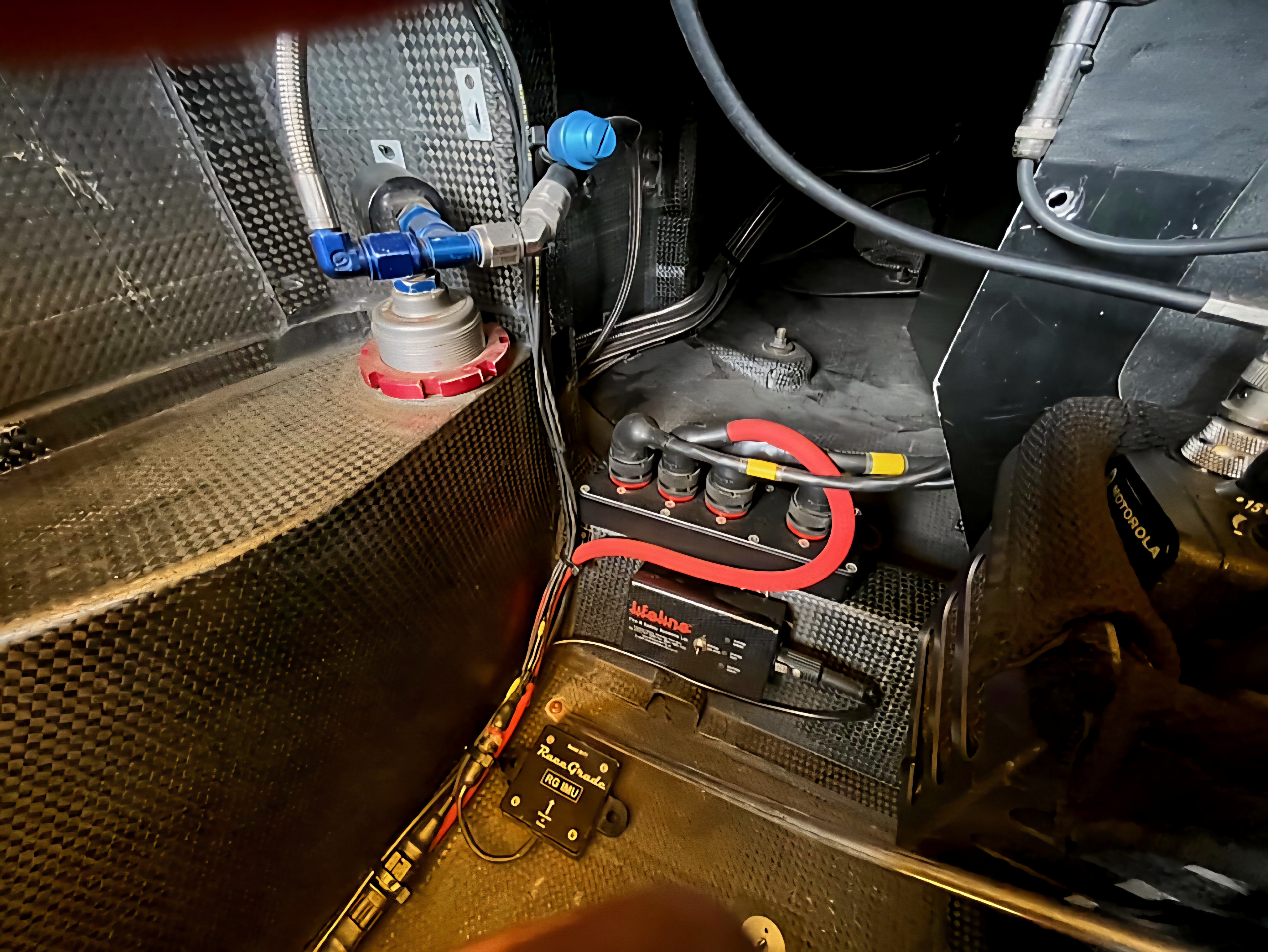

Upgraded Motec system with traction control
VBox system with dual cameras
Brakes at 50% life

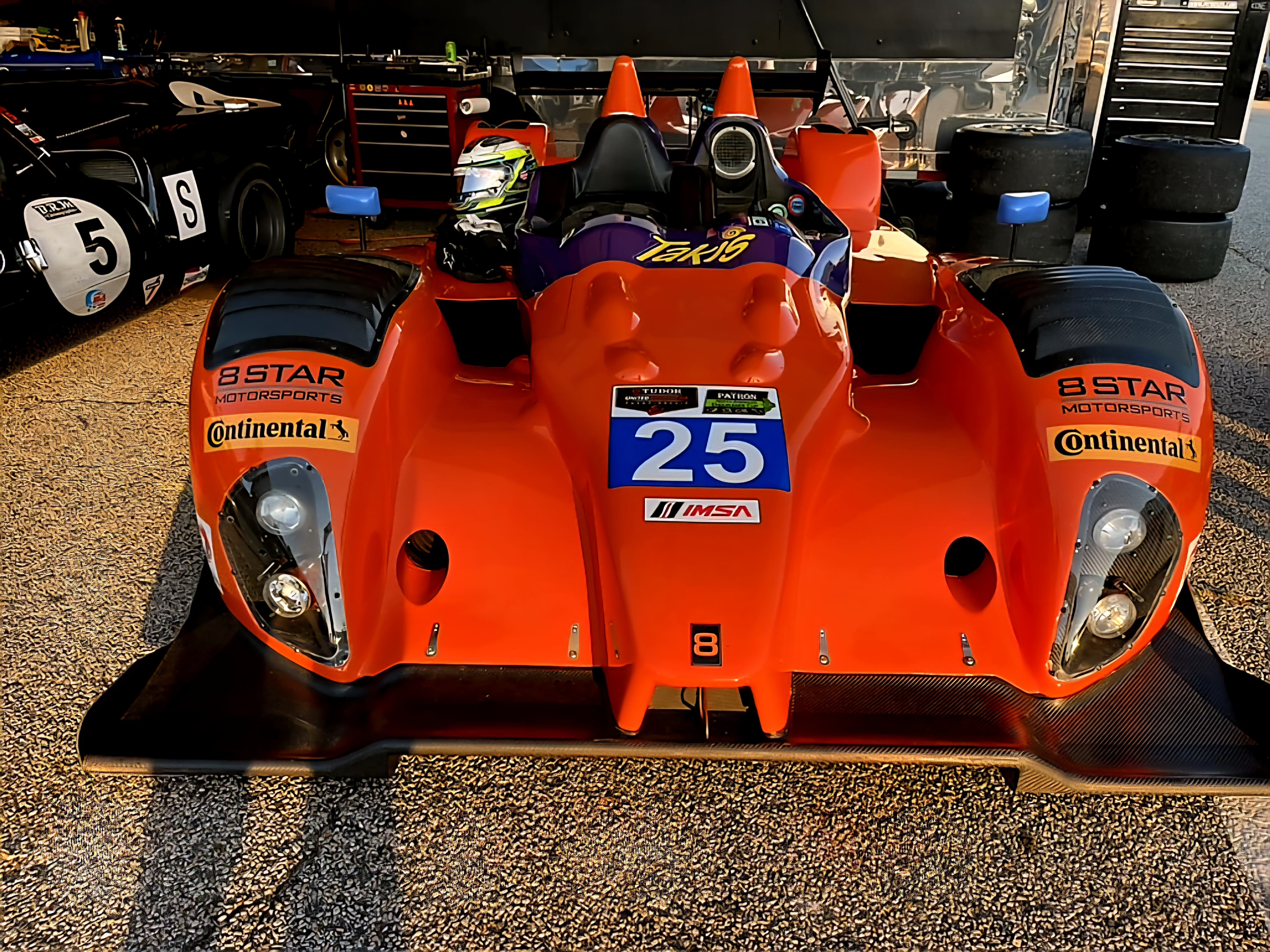

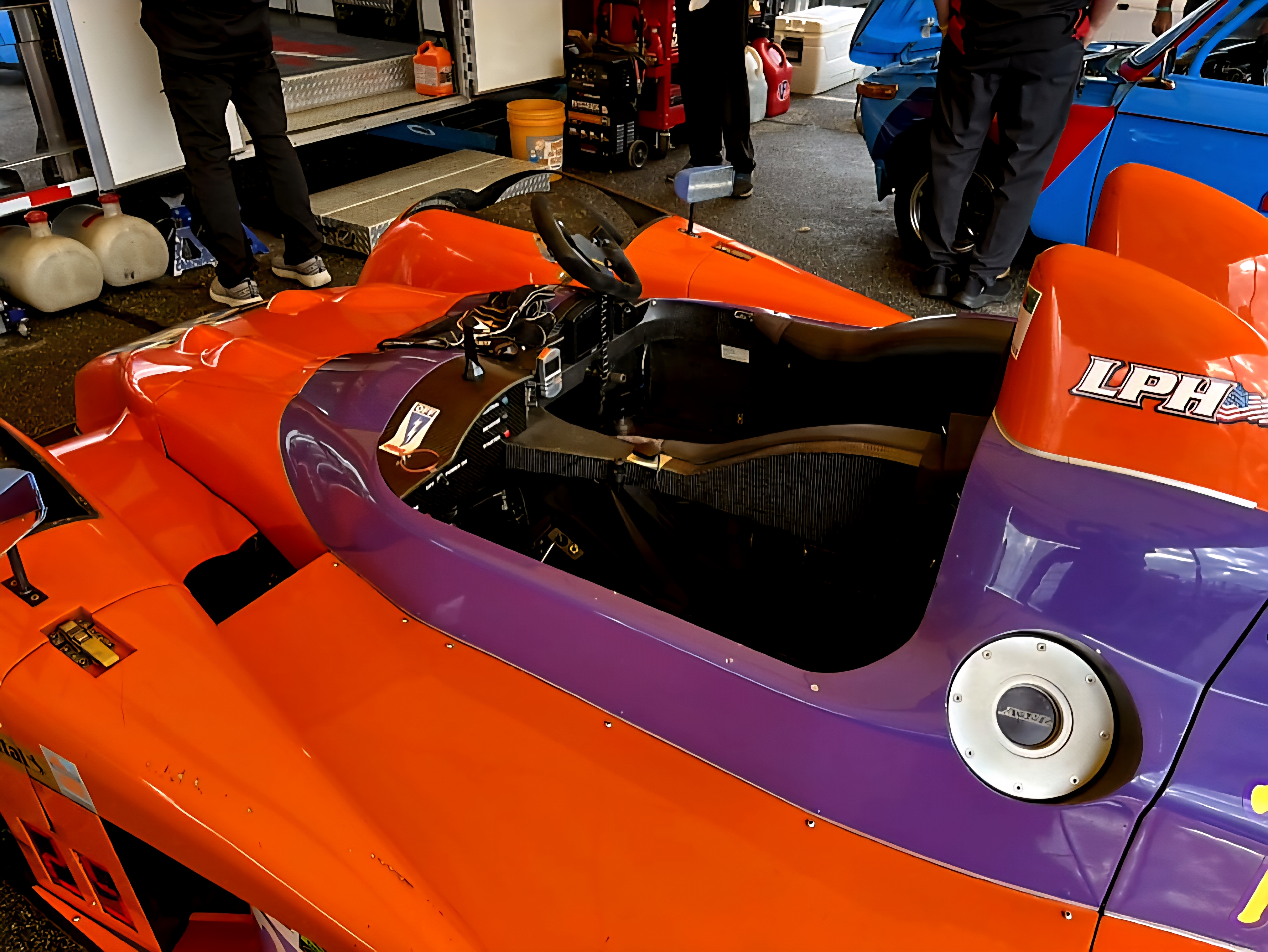

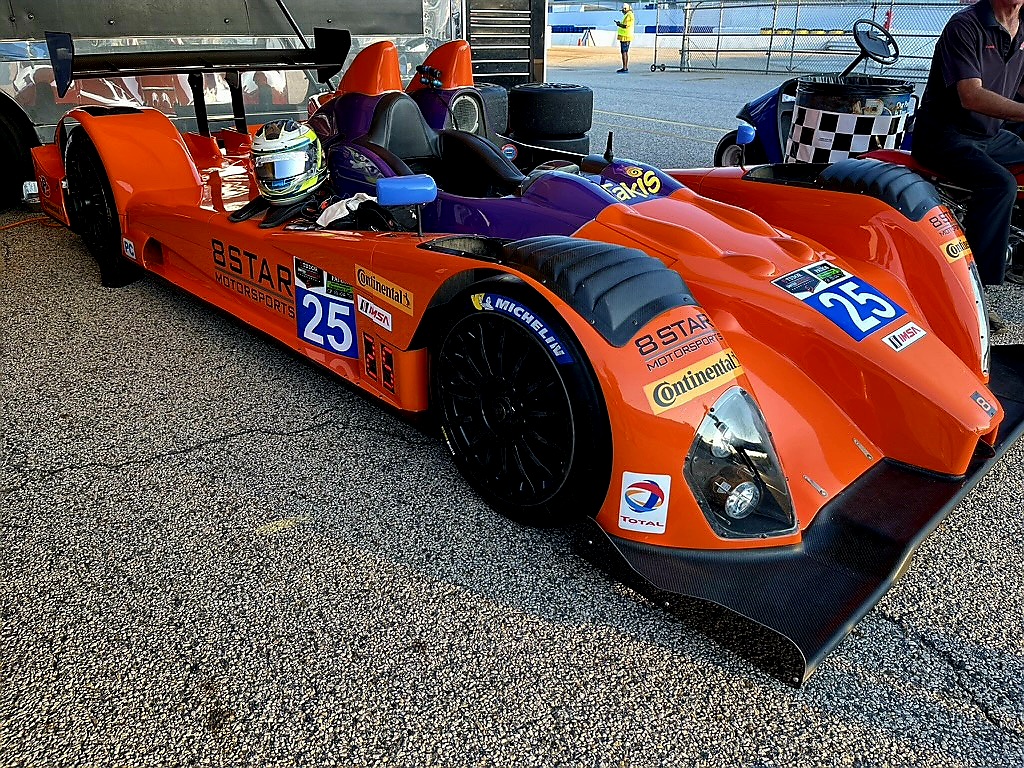

Repainted in period-correct livery
The car will be sold with a solid spares package, including 7 spare wheels and additional misc. components.
Factory Specs
Chassis
Carbon fibre monocoque & Honeycomb
Length: 4600 mm
Width: 1990 mm
Height: 1025 mm
Front track: 1647 mm
Rear track: 1609 mm
Wheelbase: 2870 mm
Weight: around 900 kg

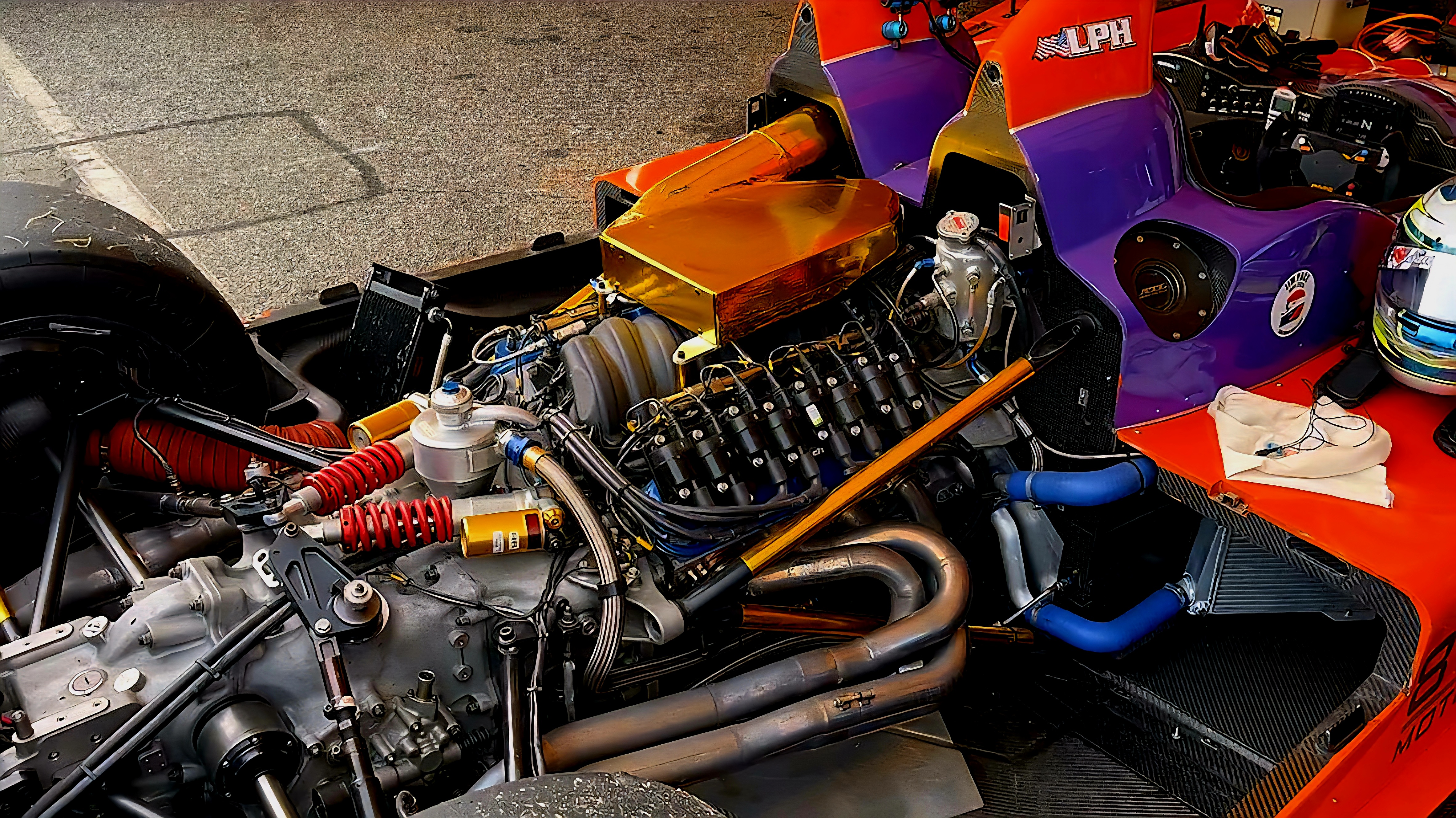

Engine
V8 GM based
Power: around 430 bhp
Torque: around 630 Nm
Max. revs: around 6000 rpm
Lubrification : dry sump
Electronic management system: Magneti Marelli
Suspensions & Tires
Double steel wisbones with pushrod
Front tyres : 12,5″x18″
Rear tyres : 13″x18″
Gearbox
Make : Xtrac
Type : Sequential
Gear change : Steering wheel-mounted paddles
Ratios : 6 + reverse
Brakes

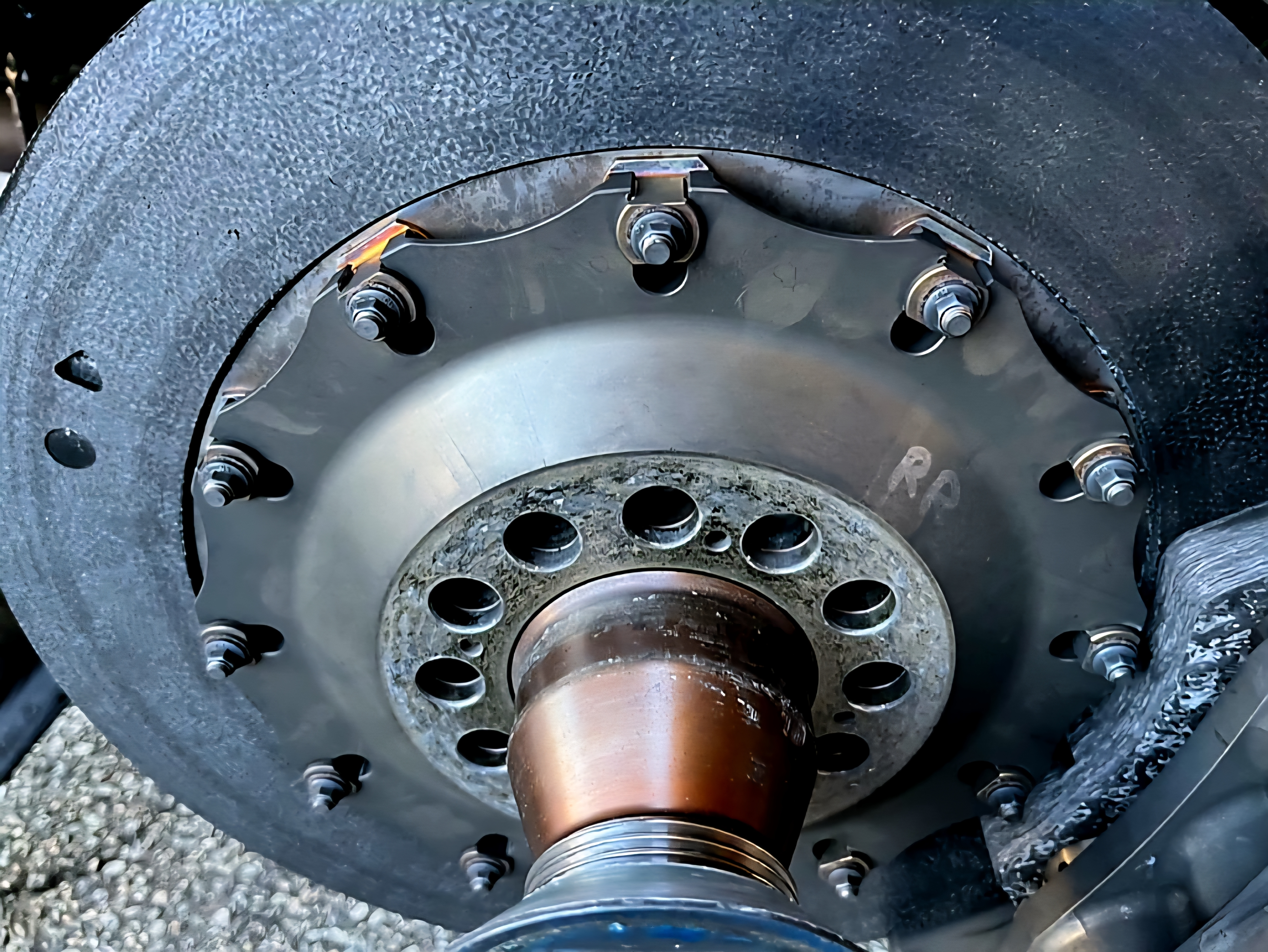

Ventilated carbon discs
Make : Brembo
Front discs : Brembo 380 mm x 37
Rear discs : Brembo 355 mm x 37 mm
Calipers : Brembo monobloc 6 pistons
Pads : Brembo

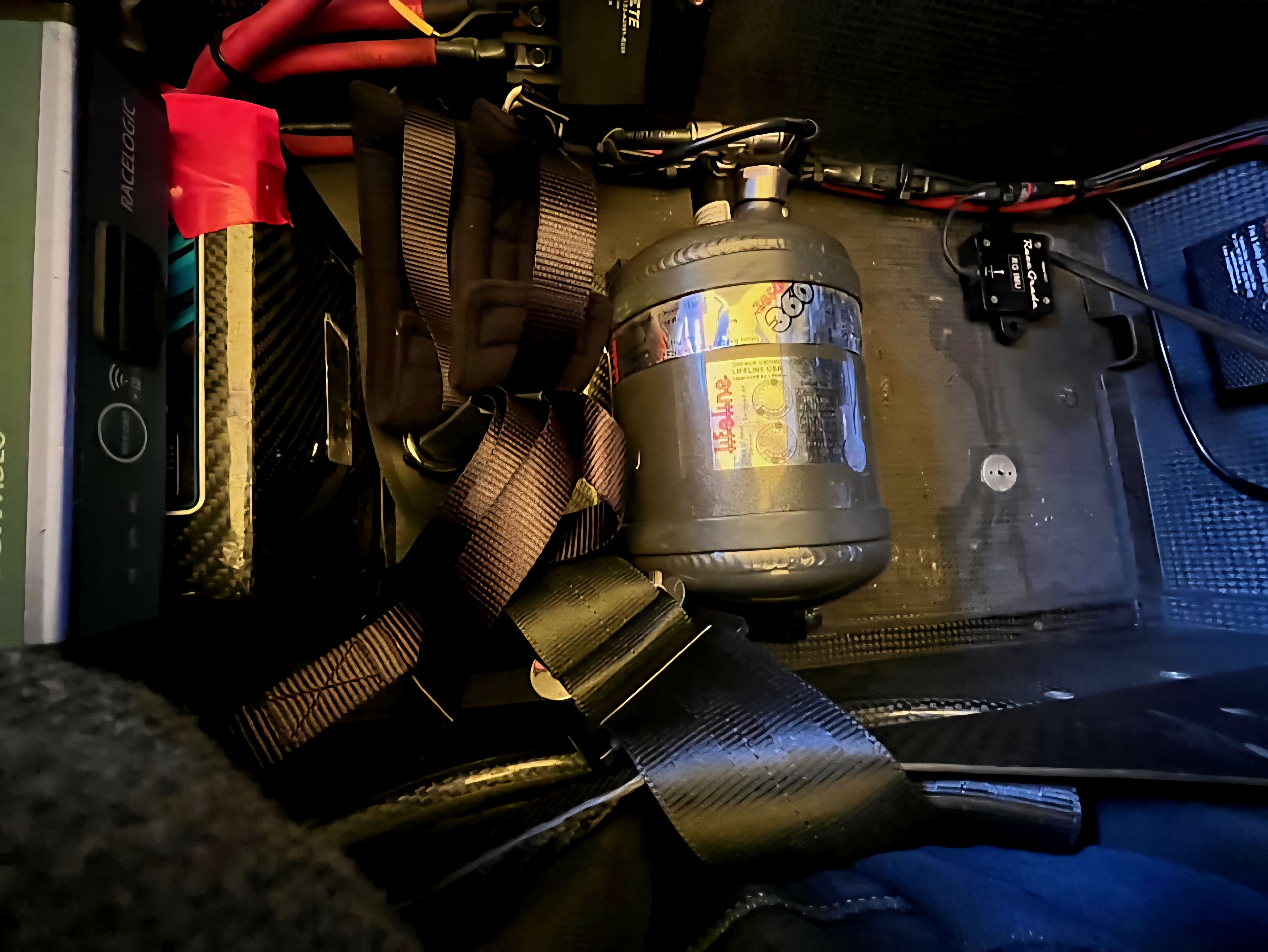

Safety Equipment
6-point harness adapted to the HANS system
Flexible fuel tank (75L)
Bodywork
Carbon/kevlar
Race in : European Le Mans Series, ALMS, Asian Le Mans Series
